General Information

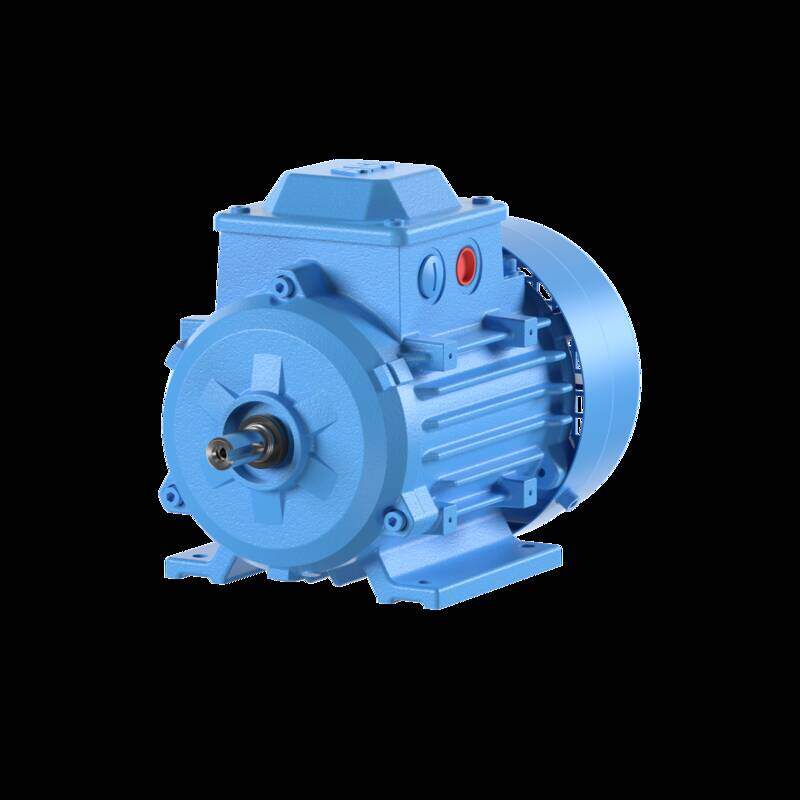

Product ID: 3GBA092510-ASC
ABB Type Designation: M2BAX 90LA 4
Catalog Description: IE2 High Efficiency Cast Iron Motors, 1.5 kW, 400 V (3GBA092510-ASC)
Ordering
Invoice Description: M2BAX 90LA 4
Product Name: 3-Phase squirrel cage motor
Product Type: EBA2__M2BAX_CI
Country of Origin: China
Customs Tariff Number: 85015220
Medium Description: 1.5kW, 4 Poles, Frame Size 90, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA092510-ASC)
Short Description: 1.5kW, 4P, Frame Size 90, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical
Connection Configuration: Y
Input Voltage (Uin): 400 V
Frequency (f): 50 Hz
Output Power: 1.5 kW
Speed: 1441 r/min
Current: 3.50 A
Power Factor: 0.730
Efficiency: 82.80 %
Torque: 10.00 N·m
Altitude: 1000 m
Ambient Temperature: 40 °C
IC Class: IC411
IE Class Data (50 Hz): IE Class IE2, Full Load (100%) 82.8 %, Partial Load (75%) 83.8 %, Partial Load (50%) 83.1 %
IE Class Data (60 Hz): IE Class IE2, Full Load (100%) 84.0 %, Partial Load (75%) 83.5 %, Partial Load (50%) 80.9 %
IP Class: IP55
Insulation Class: ICLF
Direction of Rotation: Both sides
Number of Poles (High): 4
Two Speed Motor: No
Type of Duty: S1
Voltage Code: S
Mechanical
Frame Material: Cast Iron
Frame Size: 90
Bearing: 6205-2Z/C3
Bearing NDE: 6204-2Z/C3
Lubrication: For life
IM Class: IMB3 IM1001
Terminator Box Location: D-End top
Dimensions
Product Net Depth / Length: 351 mm
Product Net Height: 217 mm
Product Net Width: 195 mm
Product Net Weight: 24 kg
Gross Weight: 27 kg
Environmental
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
SCIP: d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland
External Classifications and Standards
Standards: IEC 60034-1
UNSPSC: 26101100
