Description

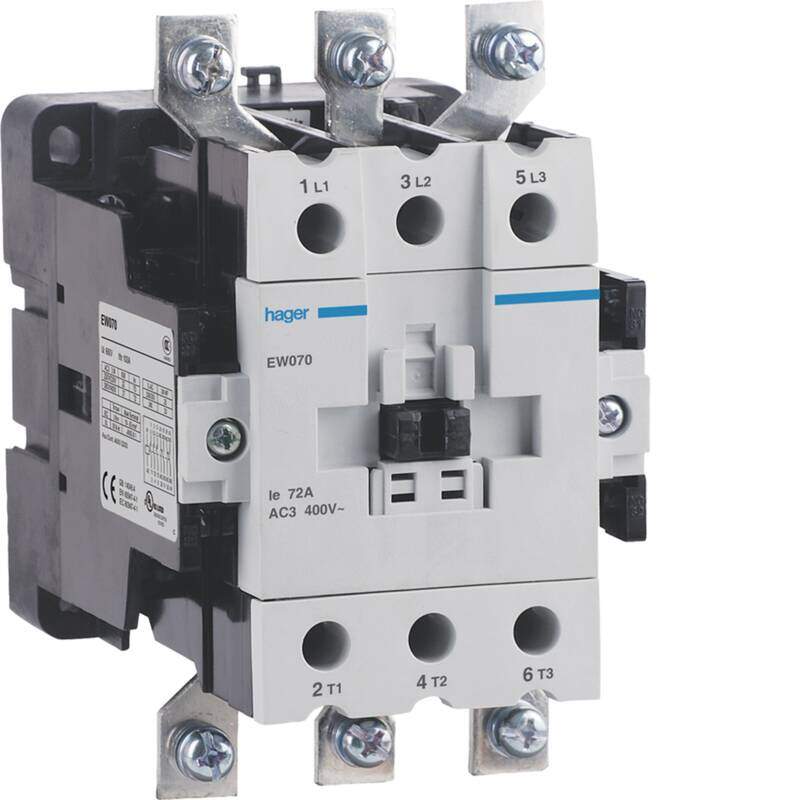

Industrial contactor 72A-AC3 / coil 230V AC 50 Hz EW070_J
Brand: Hager
Model: EW070_J
EAN: 3250612277377
Technical Characteristics
Rated operational voltage Ue: 660 V
Command voltage AC: 230 V
Command voltage DC: 0 V
Rated insulation voltage Ui: 660 V
Rated operational current Ie (AC3 220-230V): 75 A
Acceptable current rating AC3: 72 A
Rated operational current Ie (AC3 380-400V): 72 A
Depth: 12.3 cm
Frequency: 50 Hz
Rated operational power (AC3 220-230V): 22 kW
Mechanical operations: 5,000,000
Electrical endurance: 500,000 cycles
Cross-section (flexible): 10 – 35 mm²
Cross-section (massive): 10 – 35 mm²
Auxiliary contacts NO: 2
Auxiliary contacts NC: 2
NO contacts: 3
NC contacts: 0
Operating temperature: -20 to 55 °C
Storage temperature: -40 to 80 °C
RoHS Conform: Yes
