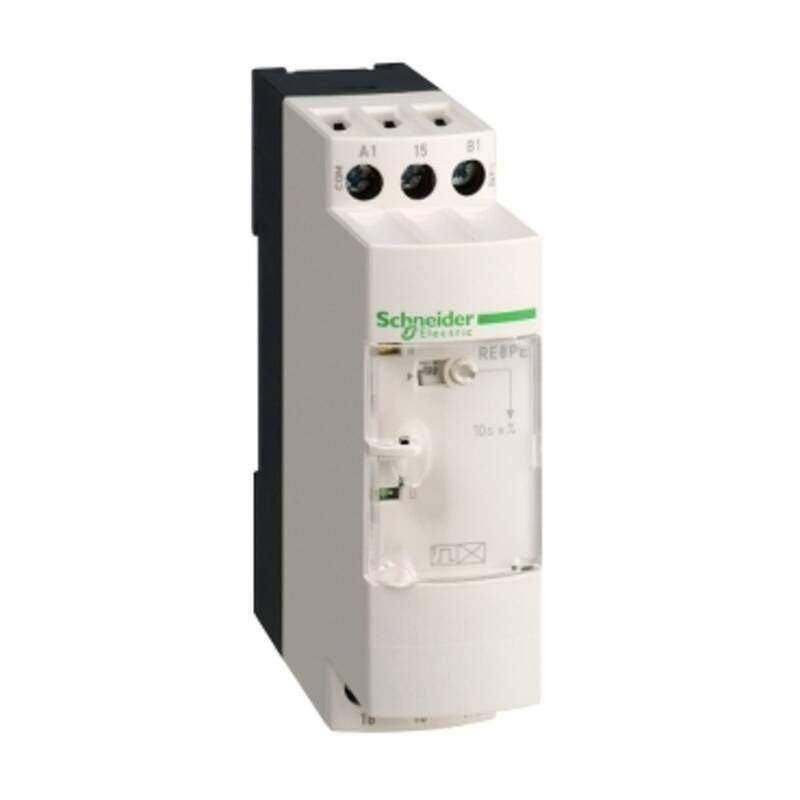

industrial timing relay – 0.1..10 s – type A – 24 V AC/DC, 110..240 V AC – 1 C/O
Product Reference: RE8TA11BUTQ
Status: Discontinued on Jan 29, 2021
Main
Range of Product: Zelio Time
Product or Component Type: Optimum industrial timing relay
Component name: RE8
Time delay type: A
Time delay range: 0.1…10 s
Sale per indivisible quantity: 10
Discrete output type: Relay
Contacts material: 90/10 silver nickel contacts
Width pitch dimension: 2.25 cm
[Us] rated supply voltage: 110…240 V AC 50/60 Hz
24 V AC/DC 50/60 Hz
Voltage range: 0.9…1.1 Us
Connections – terminals: Screw terminals, 2 x 1.5 mm² flexible with cable end
Screw terminals, 2 x 2.5 mm² flexible without cable end
tightening torque: 5.3…9.7 lbf.in (0.6…1.1 N.m)
Setting accuracy of time delay: +/- 20 % of full scale
Repeat accuracy: < 1 %
Voltage drift: < 2.5 %/V
Temperature Drift: < 0.2 %/°C
Minimum pulse duration: 26 ms
Reset time: 50 ms
maximum switching voltage: 250 V
Mechanical durability: 20000000 cycles
[Ith] conventional free air thermal current: 8 A
Maximum [Ie] rated operational current: 2 A DC-13 24 V 158 °F (70 °C) IEC 60947-5-1/1991
2 A DC-13 24 V 158 °F (70 °C) VDE 0660
3 A AC-15 24 V 158 °F (70 °C) IEC 60947-5-1/1991
3 A AC-15 24 V 158 °F (70 °C) VDE 0660
0.1 A DC-13 250 V 158 °F (70 °C) IEC 60947-5-1/1991
0.1 A DC-13 250 V 158 °F (70 °C) VDE 0660
0.2 A DC-13 115 V 158 °F (70 °C) IEC 60947-5-1/1991
0.2 A DC-13 115 V 158 °F (70 °C) VDE 0660
Minimum switching capacity: 10 mA 12 V
Marking: CE
Overvoltage category: III conforming to IEC 60664-1
[Ui] rated insulation voltage: 250 V IEC
300 V CSA
Supply disconnection value: > 0.1 Uc
Operating position: Any position without derating
Surge withstand: 2 kV IEC 61000-4-5 level 3
Power consumption in VA: 0.7 VA 24 V
1.8 VA 110 V
8.5 VA 240 V
Maximum power consumption in W: 0.5 W 24 V
Terminal description: ALT
(A1-B1)CO
(15-16-18)OC_OFF
Height: 7.8 cm
Width: 2.25 cm
Depth: 8.0 cm
Product Weight: 0.11 kg
Complementary
Immunity to microbreaks: 3 ms
Standards: EN/IEC 61812-1
Product Certifications: CSA
UL
GL
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Ambient air temperature for operation: -4…140 °F (-20…60 °C)
Relative humidity: 15…85 % 3K3 IEC 60721-3-3
Vibration resistance: 0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
IP degree of protection: IP20 terminals)
IP50 casing)
Pollution degree: 3 IEC 60664-1
Dielectric test voltage: 2.5 kV
Non-dissipating shock wave: 4.8 kV
Resistance to electromagnetic fields: 9.1 V/m (10 V/m) IEC 61000-4-3 level 3
Resistance to fast transients: 2 kV IEC 61000-4-4 level 3
Disturbance radiated/conducted: CISPR 11 group 1 – class A
CISPR 22 – class A
Environment
Category: 22376-RELAYS-MEASUREMENT(RM4)
Discount Schedule: CP2
GTIN: 00785901449140
Returnability: No
Country of origin: ID
Ordering and shipping details
Warranty (in months): 18
