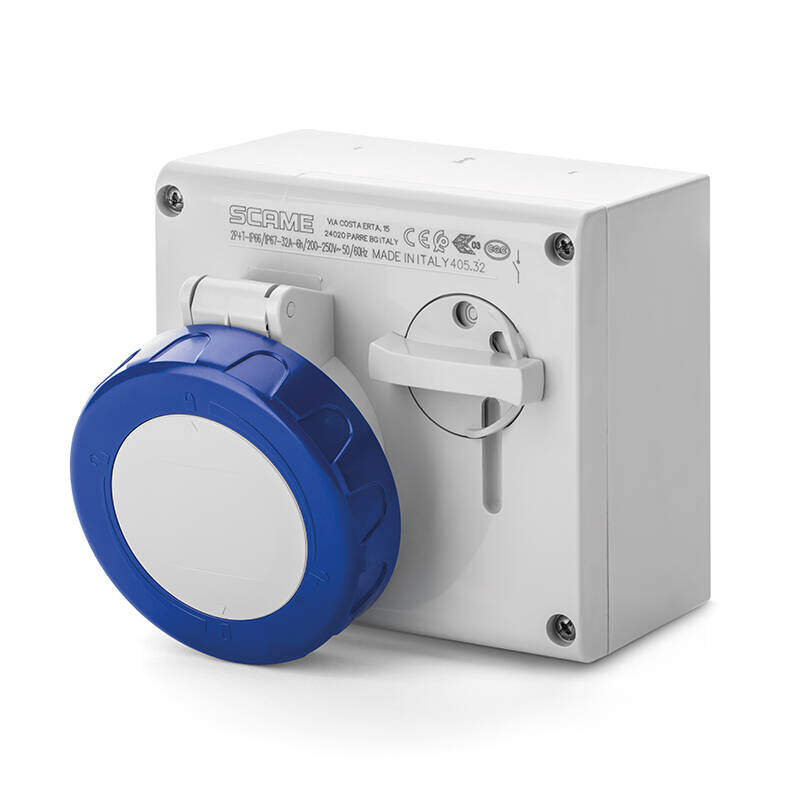

OMNIA SERIES – INTERLOCKED SOCKET 505.1683
Commercial Series: OMNIA Series
Description: The OMNIA series interlocked socket is designed for surface mounting and features a 2P+E configuration. It operates at a rated voltage of 200-250V and a rated current of 16A, with a 6h hour position. Suitable for both 50Hz and 60Hz working frequencies, it offers robust protection with an IP66/IP67 rating. Constructed from durable thermoplastic material, this socket includes a mechanical interlock for enhanced safety. Engineered for industrial use, it ensures reliable performance in demanding environments. Note that this model does not include a fuse holder.
Specifications:
- Mounting: SURFACE MOUNTING
- Rated Current: 16A
- Poles: 2P+E
- Hour Position: 6h
- Rated Voltage: 200-250V
- Working Frequency: 50Hz / 60Hz
- Colour: BLUE
- Material: THERMOPLASTIC
- Protection Degree: Watertight (IP66/IP67, IK08)
- Terminals: Screw terminals
- Contact Material: CuZn (brass)
- Flange: 136X125mm_PAR
- Options: With mechanical interlock
- Notes: WITHOUT FUSE HOLDER
- Padlock: ø4,7mm
Product Details:
- EAN Code: 8001636049960
- Intrastat Code: 8536699099
- Net Weight: 0.586 kg
Packaging Details:
- Carton EAN: 8001636921549
- Quantity: 6
- Dimensions: 420.0 mm x 310.0 mm x 195.0 mm
- Volume: 25389.0 ccm
