Description
General Information
Extended Product Type: IS2-EA1860
Product ID: EA1860
EAN: 8015646677129
Catalog Description: BACK PLATE1800X600MM (HXW)

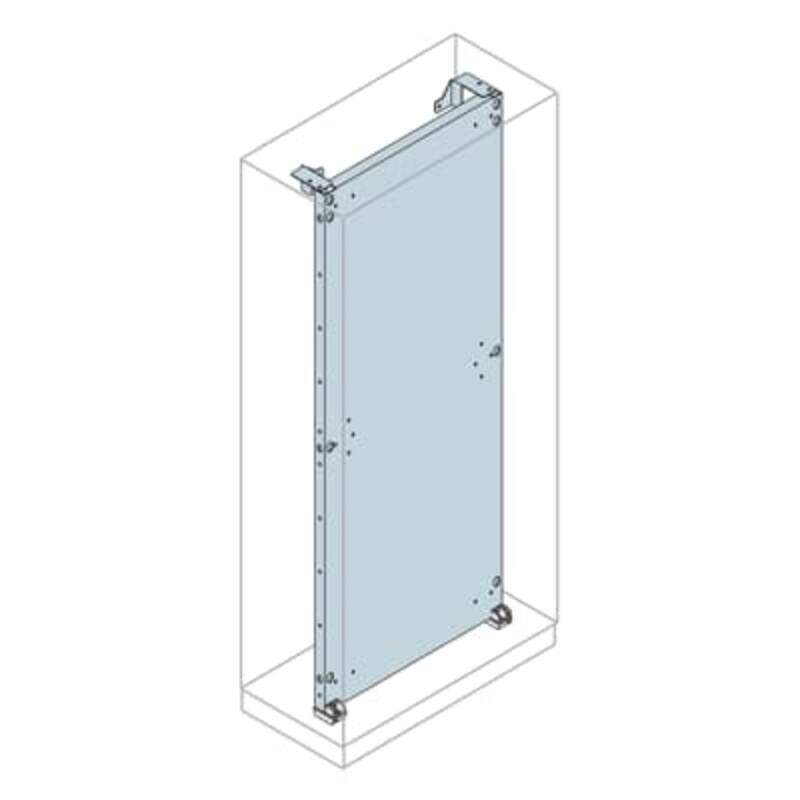

Long Description: Mounting plate 1800x600mm (HxW)
Technical
Suitable For: AM2 Cabinets
IS2 Enclosures for Automation
Suitable for Product Class: Control and Automation Board
Accessory Type: 2. Mounting Plates
Product Type: 5B5B30B320
Options Provided: 1. Standard mounting plates
Remarks: ETIM
Design
Material: Galvanized Steel sheet
Material Compliance
RoHS Date: 20250108
REACH Information: False – does not contain substances > 0.1 mass percentage
REACH Date: 20250121
WEEE Category: Product Not in WEEE Scope
Dimensions
Product Net Width: 491 mm
Product Net Height: 1692 mm
Product Net Depth / Length: 30 mm
Product Net Weight: 20.4 kg
Reference Depth/Length: 400 mm
500 mm
600 mm
800 mm
1000 mm
Reference Height: 1800 mm
Reference Width: 600 mm
Ordering
Package Level 1 Units: box 1 piece
Package Level 1 Gross Weight: 20.400 kg
Installation
Mounting Type: Kit
Pre assembled
External Classifications and Standards
ETIM 9: EC000213 – Mounting plate for distribution board
ETIM 10: EC000213 – Mounting plate for distribution board
eClass: V11.1 : 27400639
Object Classification Code: U
Standards: See code for structure
