General Information
Extended Product Type: IS2-EB1041
Product ID: EB1041
EAN: 8015646679529

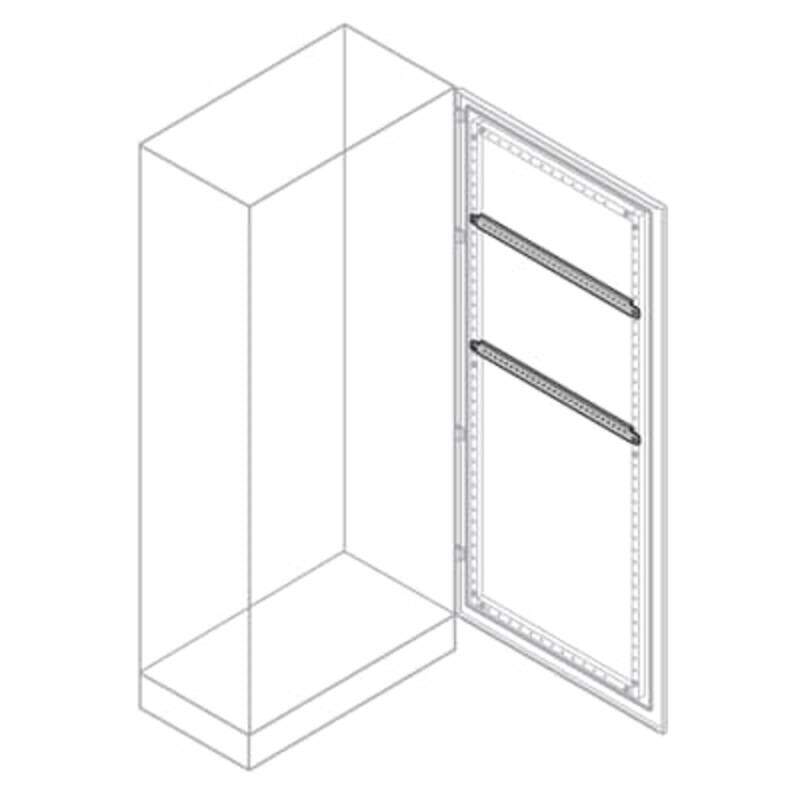

Catalog Description: N.2 HORIZONTAL SECTIONS H=35MM W=600MM
Long Description: N°2 horizontal sections h=35mm 600mm (W)
Technical
Sub-Function 3: Other
Suitable For: AM2 Cabinets, IS2 Enclosures for Automation
Suitable for Product Class: Control and Automation Board
Accessory Type: 19. Horizontal reinforcement profiles for door
Product Type: 5B5B30B340
Remarks: ETIM
Design
Material: Galvanized Steel sheet
Material Compliance
RoHS Date: 20250108
REACH Information: False – does not contain substances > 0.1 mass percentage
REACH Date: 20250121
WEEE Category: Product Not in WEEE Scope
Dimensions
Product Net Width: 40 mm
Product Net Height: 35 mm
Product Net Depth / Length: 510 mm
Product Net Weight: 0.540 kg
Reference Depth/Length: 300 mm, 400 mm, 500 mm, 600 mm, 800 mm, 1000 mm
Reference Height: 1400 mm, 1600 mm, 1800 mm, 2000 mm, 2200 mm
Reference Width: 600 mm
Ordering
Package Level 1 Units: box 1 piece
Package Level 1 Gross Weight: 0.540 kg
Installation
Mounting Type: Kit, Pre assembled
External Classifications and Standards
ETIM 9: EC002625 – Mounting accessories (enclosure/cabinet)
ETIM 10: EC002625 – Mounting accessories (enclosure/cabinet)
eClass: V11.1 : 27182807
Object Classification Code: U
Standards: See code for structure
