Description
General Information
Extended Product Type: IS2-EP1480K
Product ID: EP1480K
EAN: 8015646834911

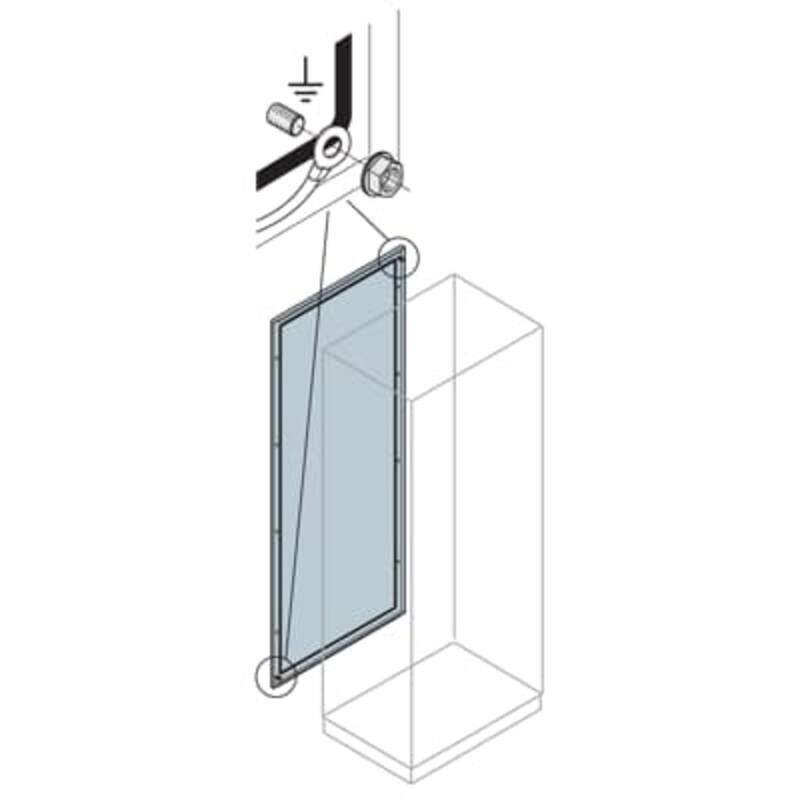

Catalog Description: REAR BLIND PANEL 1400X800MM (HXW)
Long Description: Rear Blind Panel 1400x800mm (HxW) 7035
Technical
Sub-Function 3: Back panel
Suitable For: IS2 Enclosures for Automation
Suitable for Product Class: Control and Automation Board
Configuration Type: 4. Rear panel
Enclosure Type: Kit – rear panel
Product Type: 5B5B20B260
Remarks: ETIM
Design
Surface Finishing: Orange Peel, RAL 7035
Material: Pickled steel sheet
RAL Number: RAL 7035 – Light Grey
Dimensions
Product Net Width: 790 mm
Product Net Height: 1396 mm
Product Net Depth / Length: 16 mm
Product Net Weight: 14.685 kg
Ordering
Package Level 1 Units: box 1 piece
Package Level 1 Gross Weight: 15.074 kg
Installation
Mounting Type: Kit
External Classifications and Standards
ETIM 9: EC002524 – Side-/back panel (enclosure/cabinet)
ETIM 10: EC002524 – Side-/back panel (enclosure/cabinet)
eClass: V11.1 : 27182101
Standards: See code for structure
