Latching relay 2NC+2NO 230V

الوصف

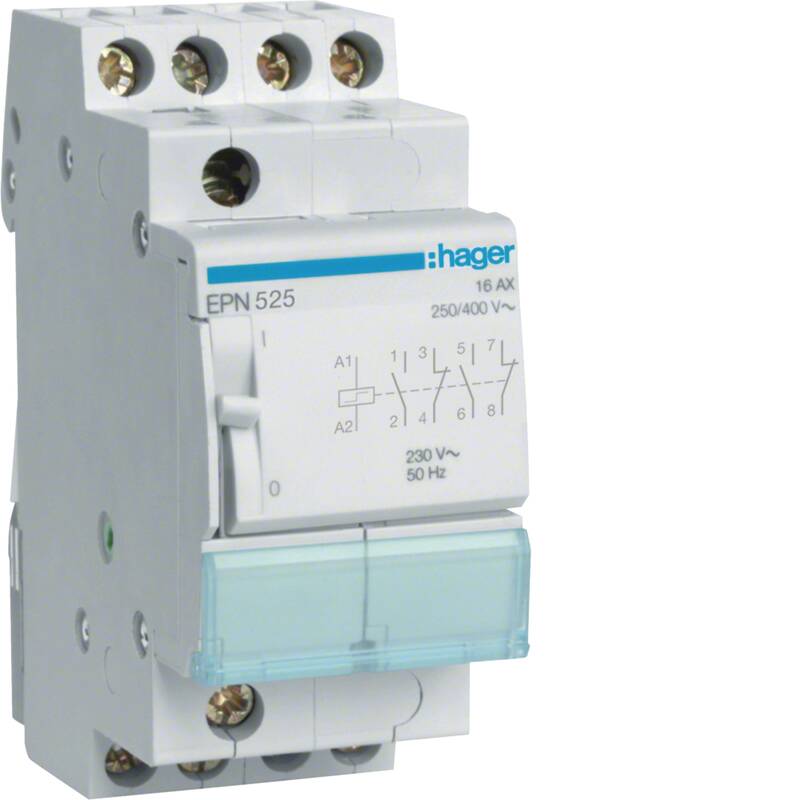

Latching relay 2NC+2NO 230V EPN525

Elec­tric current

Rated current: 16 A

Quies­cent current: 6 mA

Accept­able current rating AC1: 16 A

Capa­city

Number of modules: 2

Connec­tion

Type of contacts: 2NC+2NO

Cross-sec­tion flex­ible conductor: 1 – 6 mm²

Cross-sec­tion rigid conductor: 1.5 – 10 mm²

Number of contacts: 4

Voltage

Command voltage AC: 230 – 230 V

Command voltage DC: 110 – 110 V

Command voltage 2: 110 – 110 V

Command voltage 1: 230 – 230 V

Rated insu­la­tion voltage Ui: 400 V

Rated oper­a­tional voltage Ue: 250 – 250 V

Frequency

Frequency: 50 – 60 Hz

Use condi­tions

Oper­ating temper­ature: -5 – 40 °C

Stor­age/trans­port temper­ature: -40 – 80 °C

Connectivity

Type of connec­tion: Screw terminal

Power

Total power loss under IN: 2.40 W

Inrush power absorbed: 55 VA

Dimen­sions

Height: 83 mm

Width: 35 mm

Depth: 63 mm

Lighting

Max. load fluor­es­cent lamp: 800 VA

Max. load fluor­es­cent lamp parallel compensated: 900 VA

Equip­ment

Number of NO contacts: 2

Number of NC contacts: 2
