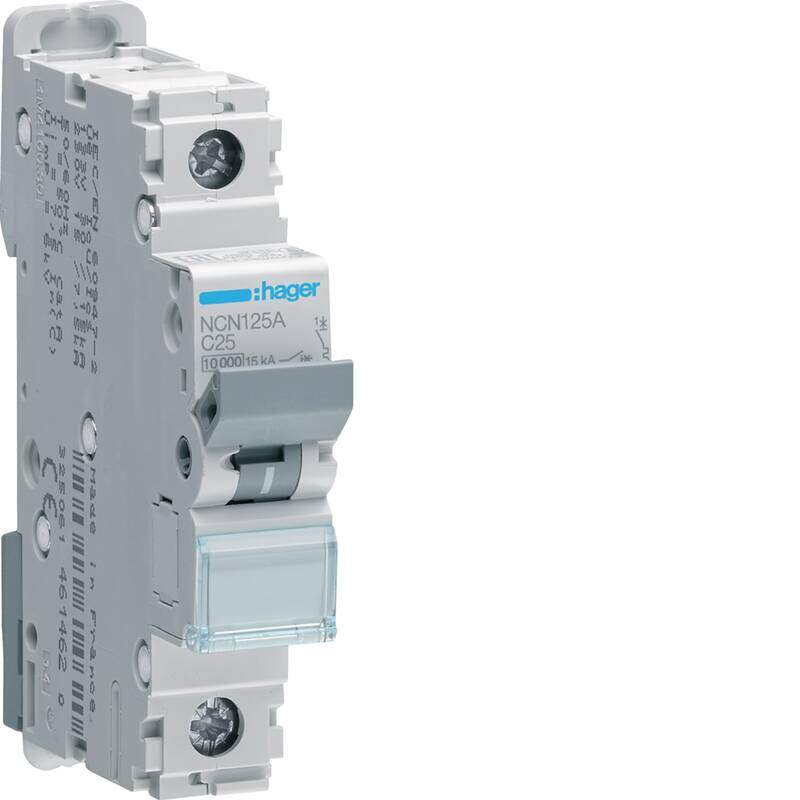

Hager NCN125A MCB 1P 10kA/15kA C-25A 1M
The Hager NCN125A is a high-performance Miniature Circuit Breaker (MCB) designed for reliable circuit protection in commercial and residential distribution systems.
Technical Characteristics
- Type of pole: 1P
- Curve: C
- Rated current: 25 A
- Rated operational voltage Ue: 230 – 400 V AC
- Rated short-circuit breaking capacity Icn: 10 kA (according to IEC 60898-1)
- Rated ultimate short-circuit breaking capacity Icu: 15 kA (according to IEC 60947-2)
- Number of modules: 1
- Frequency: 50 – 60 Hz
- IP Rating: IP20
- Operating temperature: -25 to 70 °C
- Power dissipation: 3.37 W
- Dimensions: Height 8.3 cm, Width 1.75 cm, Depth 7 cm
