Description

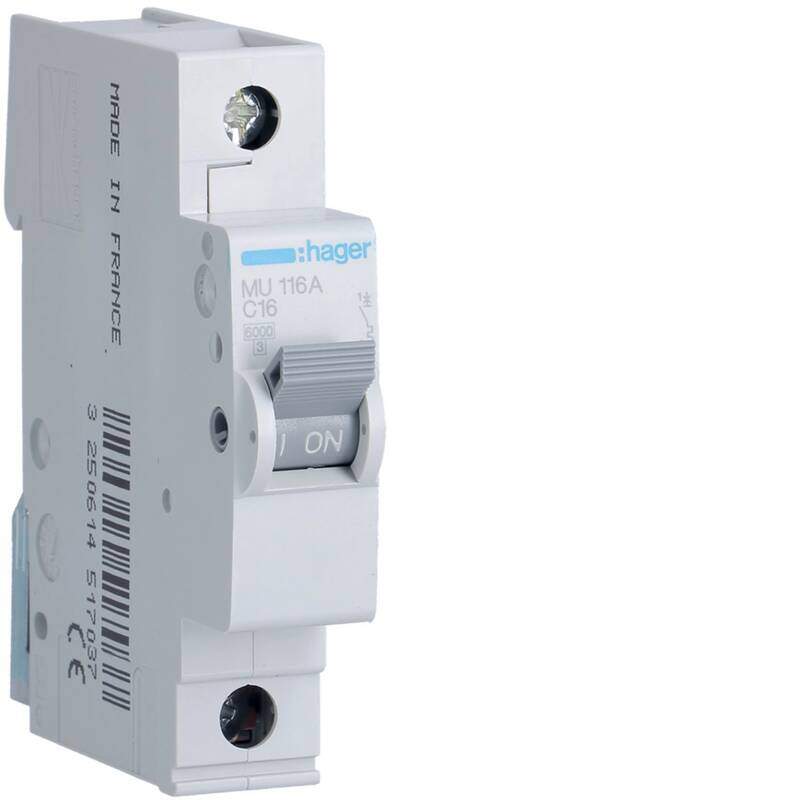

Hager MU116A MCB 1P 6kA C-16A 1M
The Hager MU116A is a reliable Miniature Circuit Breaker (MCB) designed for efficient circuit protection in commercial and residential distribution systems. It features a 1-pole configuration with a C-curve characteristic and a rated current of 16 A.
Technical Characteristics
Rated Current: 16 A
Rated Breaking Capacity: 6 kA
Poles: 1P
Curve: C
Number of Modules: 1
Rated Operational Voltage: 230 – 400 V AC
Frequency: 50 – 60 Hz
IP Rating: IP20
Dimensions: 83 mm (Height) x 17.50 mm (Width) x 70 mm (Depth)
Connection Cross-section: 1 – 35 mm² (rigid), 1 – 25 mm² (flexible)
