Description

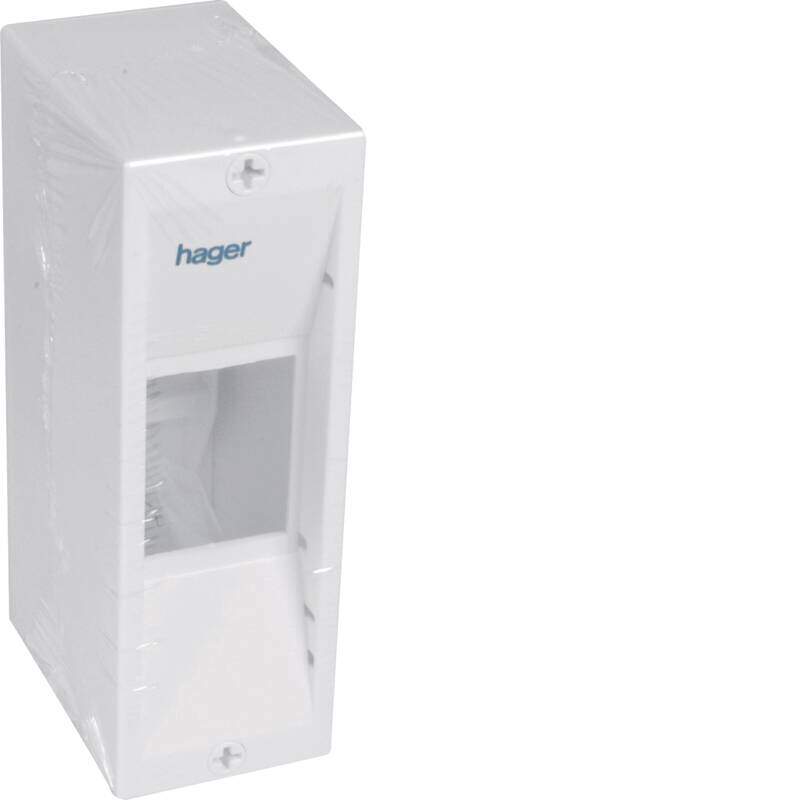

Mini-enclosure, gamma, 2 module, protect. class IP30 GD102E
The Hager GD102E is a surface-mounted mini-enclosure from the gamma range, designed for 2 modules. It features an IP30 protection rating and is suitable for indoor installations.
Technical Characteristics
- Nominal Voltage: 230 V
- Rated Current: 32 A
- Dimensions: 16 cm (Height) x 5.5 cm (Width) x 8.2 cm (Depth)
- Material: Plastic (RAL 9010, Pure white)
- Protection Class: Isolation class II
- Impact Resistance: IK05
- Glow Wire Test: 750 °C
- Power Loss: 4.1 W (at 50% height), 3.1 W (at 75% height)
- Number of Rows/Rails: 1 / 1
- Conduit Inlets: Yes
