Description

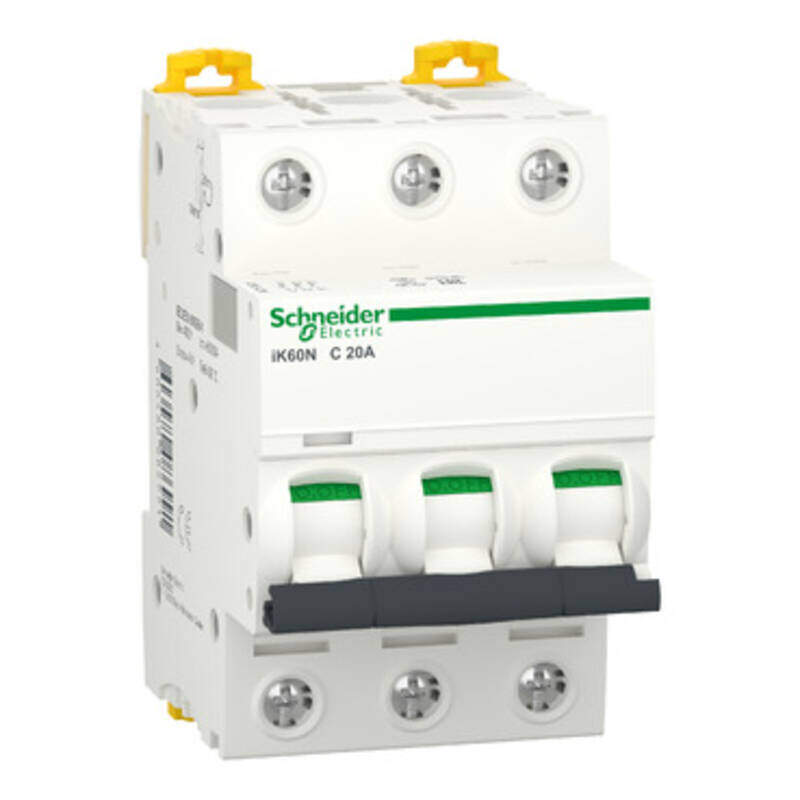

miniature circuit breaker – iK60N – 3P – 20 A – C curve
Reference: A9K24320
This Acti9 iK60N product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 20A In rated current and C tripping curve.
Specifications
Range: Acti9
Product name: Acti9 iK60
Product or component type: Miniature circuit-breaker
Device short name: iK60N
Device application: Distribution
Poles description: 3P
Number of protected poles: 3
[In] rated current: 20 A at 30 °C
Network type: AC
Trip unit technology: Thermal-magnetic
Curve code: C
Suitability for isolation: Yes conforming to EN/IEC 60898-1
Standards: EN/IEC 60898-1
Product certifications: SNI
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 400 V AC 50/60 Hz
Magnetic tripping limit: 5…10 x In
Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
[Ics] rated service breaking capacity: 6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
Limitation class: 3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage: 440 V AC 50/60 Hz conforming to EN/IEC 60898-1
[Uimp] rated impulse withstand voltage: 4 kV conforming to EN/IEC 60898-1
Contact position indicator: No
Control type: Toggle
Local signalling: ON/OFF indication
Mounting mode: Clip-on
Mounting support: 35 mm DIN rail
Connection pitch: 18 mm between phases
9 mm pitches: 6
Height: 85 mm
Width: 54 mm
Depth: 78.5 mm
Product weight: 300 g
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Locking options description: Padlocking device
Connections – terminals: Tunnel type terminal (top or bottom) , 1…25 mm², rigid
Tunnel type terminal (top or bottom) , 1…16 mm², flexible
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 2 N.m top or bottom
Earth-leakage protection: Without
IP degree of protection: IP20 conforming to IEC 60529
Pollution degree: 2 conforming to EN/IEC 60898-1
Overvoltage category: II
Ambient air temperature for operation: -25…60 °C
Ambient air temperature for storage: -40…85 °C
Warranty (in months): 18
