Description

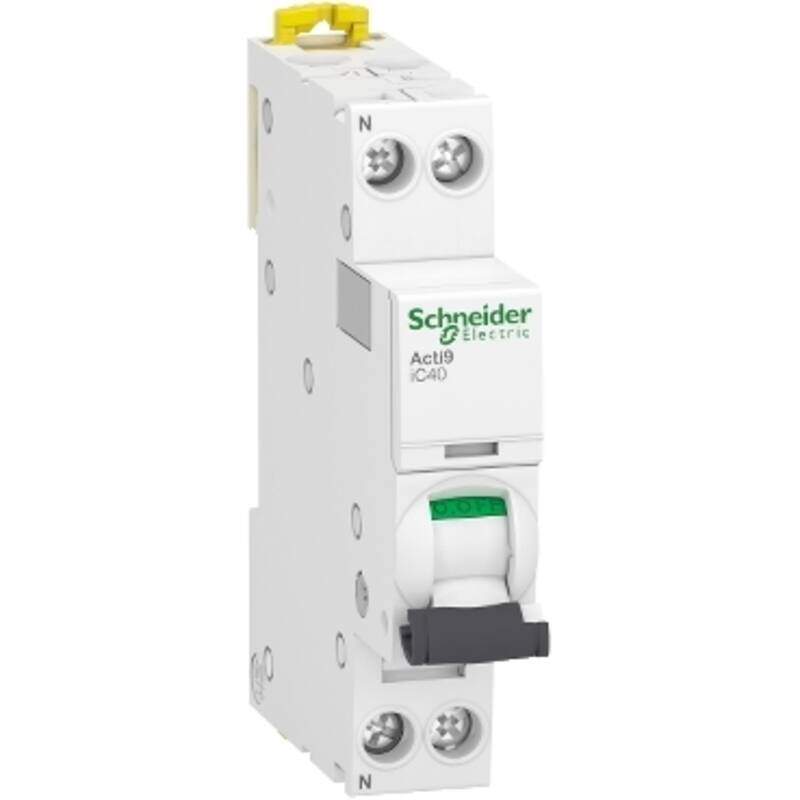

Miniature circuit breaker (MCB), Acti9 iC40, 1P+N, 16A, C curve
This Acti9 iC40 product is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole and 16A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6kA at 230V AC conforming to EN/IEC 60947-2 standard and 4500A at 230V AC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.
Technical Specifications
- Poles description: 1P + N
- Number of protected poles: 1
- Neutral position: Left
- Rated current: 16 A
- Network type: AC
- Trip unit technology: Thermal-magnetic
- Curve code: C
- Breaking capacity: 6 kA Icu at 230 V AC 50/60 Hz, 4500 A Icn at 230 V AC 50/60 Hz
- Rated operational voltage: 230 V AC 50/60 Hz
- Height: 8.5 cm
- Width: 1.8 cm
- Depth: 7.4 cm
- Net weight: 0.12 kg
- Mechanical durability: 20000 cycles
- Electrical durability: 20000 cycles
- IP degree of protection: IP20 / IP40
