Description

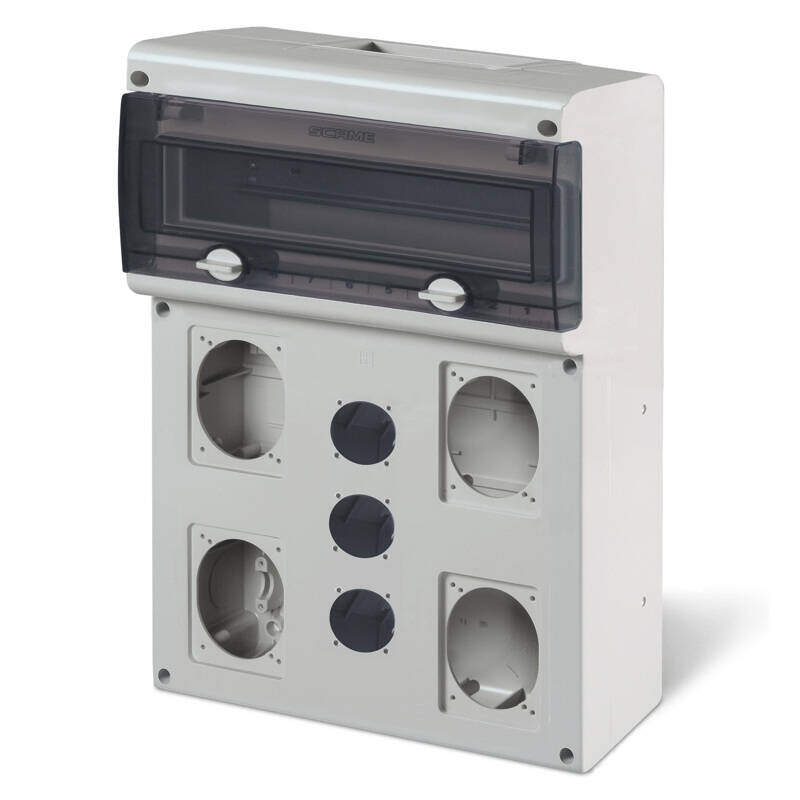

MODULAR ENCLOSURE
SKU: 632.5520-000
Description: IP66 SURFACE MOUNTING BLOCK5 14 MOD. 272x414x110mm
Tech Data
Commercial Series: BLOCK Series
Synthetical description: MODULAR ENCLOSURE
Material: THERMOPLASTIC
Mounting version: SURFACE MOUNTING
Protection degree IP: IP66
Protection degree IK: IK08
Modularity: BLOCK5
N.° modules: 14 MOD.
Dimensions: 272x414x110mm
Dissipable power: 15W
Catalogue notes: – Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standardsn- 70x87mm cut-outsn- 50×60 mm cut-outsn- With cut-outs to contain 16A (70x87mm) or, with suitable adaption, 32A socket (84x106mm) and DOMOPLUS Series in the grey coloured positions
Product
EAN code: 8001636247557
INTRASTAT code: 8538100000
Net weight: 1.799 KG
