Description

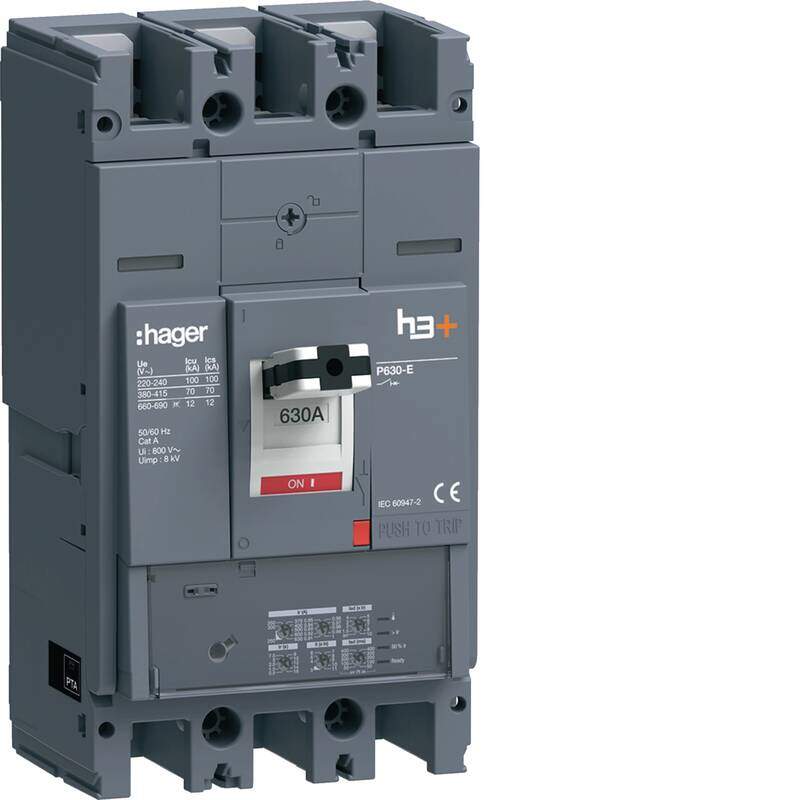

Hager HEW630JR Moulded Case Circuit Breaker
The Hager HEW630JR is a high-performance Moulded Case Circuit Breaker (MCCB) from the h3+ P630 series, featuring an LSI trip unit. It is designed for reliable circuit protection in commercial and industrial distribution systems.
Technical Characteristics
- Rated Current (In): 630 A
- Number of Poles: 3P3D
- Breaking Capacity (Icu): 70 kA at 400/415 V AC
- Rated Operational Voltage (Ue): 220 to 690 V AC
- Rated Insulation Voltage (Ui): 800 V
- Rated Impulse Withstand Voltage (Uimp): 8000 V
- Frequency: 50/60 Hz
- Power Dissipation: 119 W (39.6 W per pole)
- IP Rating: IP4X
- Operating Temperature: -25°C to 70°C
- Dimensions: 26 cm (Height) x 14 cm (Width) x 15 cm (Depth)
