General Information
Extended Product Type: IS2-EH6060
Product ID: EH6060
EAN: 8015646679680
Catalog Description: MOUNT.PLATEXSEPAR.CELL 600X600MM(HXW)

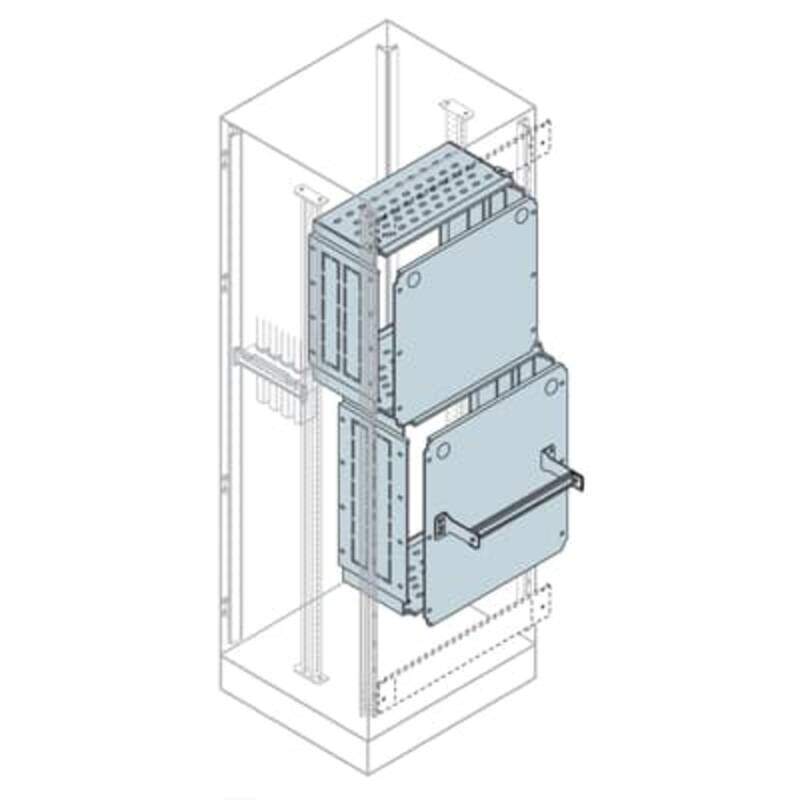

Long Description: Compartment cubicle 600x600mm (HxW)
Technical
Suitable For: IS2 Enclosures for Automation
Suitable for Product Class: Control and Automation Board
Accessory Type: 11. Configuration with compartments
Product Type: 5B5B30B370
Door Type: Single
Door Surface Finishing: Opaque
Options Provided: Compartment cubicle
Remarks: ETIM
Design
Surface Finishing: Orange Peel, RAL 7035
Material: Pickled steel sheet
Door Material: Steel Sheet
RAL Number: RAL 7035 – Light Grey
Material Compliance
WEEE Category: Product Not in WEEE Scope
Dimensions
Product Net Width: 498 mm
Product Net Height: 553 mm
Product Net Depth / Length: 229.4 mm
Product Net Weight: 28.890 kg
Ordering
Package Level 1 Units: box 1 piece
Package Level 1 Gross Weight: 29.480 kg
Installation
Mounting Type: Kit, Pre assembled
External Classifications and Standards
ETIM 9: EC000747 – Door/operating panel (enclosure/cabinet)
ETIM 10: EC000747 – Door/operating panel (enclosure/cabinet)
eClass: V11.1 : 27182204
Object Classification Code: U
Standards: See code for structure
