General Information
Extended Product Type: MS132-1.6
Product ID: 1SAM350000R1006
EAN: 4013614400063

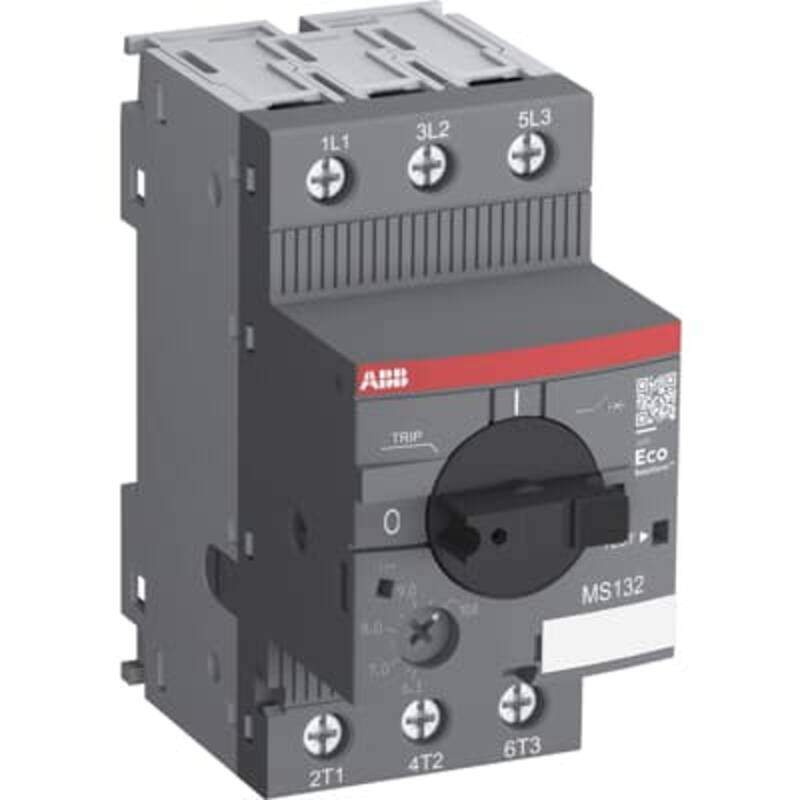

Catalog Description: MS132-1.6 Manual Motor Starter 1.0 … 1.6 A
Long Description: The MS132-1.6 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 1.60 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362010
Dimensions
Product Net Width: 45 mm
Product Net Height: 90 mm
Product Net Depth / Length: 86.75 mm
Product Net Weight: 0.265 kg
Technical
Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 100 kA
(250 V DC) 3 Poles in Series 10 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
Rated Instantaneous Short-Circuit Current Setting (Ii): 20 A
Setting Range: 1.0 … 1.6 A
Rated Operational Power AC-3 (Pe): (400 V) Three Phase 0.55 kW
Rated Operational Power AC-3e (Pe): (400 V) Three Phase 0.55 kW
Rated Operational Voltage: Main Circuit 690 V AC
Main Circuit 250 V DC
Rated Operational Current (Ie): 1.6 A
Rated Operational Current AC-3 (Ie): 1.6 A
Rated Operational Current AC-3e (Ie): 1.6 A
Rated Operational Current DC-5 (Ie): 1.6 A
Rated Frequency (f): Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV
Rated Insulation Voltage (Ui): 690 V
Power Loss: at Rated Operating Conditions per Pole 0.6 … 1.7 W
Number of Poles: 3P
Conventional Free-air Thermal Current (Ith): Main Circuit 1.6 A
Degree of Protection: Housing IP20
Main Circuit Terminals IP10
Pollution Degree: 3
Electrical Durability: 50000 cycle
Mechanical Durability: 100000 cycle
Terminal Type: Screw Terminals
Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 … 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 … 2.5 mm²
Flexible 1/2x 0.75 … 2.5 mm²
Rigid 1/2x 1 … 4 mm²
Tightening Torque: Main Circuit 0.8 … 1.2 N·m
Wire Stripping Length: Main Circuit 9 mm
Recommended Screw Driver: Pozidriv 2
Mounting Position: 1 … 6
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Contact Position Indication: ON / OFF / TRIP
Standards: IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L
Technical UL/CSA
Short-Circuit Current Rating (SCCR): Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kA
Manual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 47 kA
Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
Horsepower Rating UL/CSA: (440 … 480 V AC) Three Phase 0.75 Hp
(550 … 600 V AC) Three Phase 0.75 Hp
General Use Rating UL/CSA: (600 V AC) 1.6 A
Tightening Torque UL/CSA: Main Circuit 10 … 12 in·lb
Environmental
Ambient Air Temperature: Around the Enclosure 0 … +40 °C
Operation -25 … +70 °C
Operation Compensated -25 … +60 °C
Storage -50 … +80 °C
Ambient Air Temperature Compensation: Yes
Maximum Operating Altitude Permissible: 2000 m
Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
Resistance to Vibrations: 5g 3 … 150 Hz
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 92 mm
Package Level 1 Depth / Length: 95 mm
Package Level 1 Height: 50 mm
Package Level 1 Gross Weight: 0.28 kg
Package Level 1 EAN: 4013614400063
Package Level 2 Units: carton 40 piece
Package Level 2 Gross Weight: 11.586 kg
Package Level 2 EAN: 4013614408960
External Classifications and Standards
Object Classification Code: F
ETIM 9: EC000074 – Motor protection circuit-breaker
ETIM 10: EC000074 – Motor protection circuit-breaker
eClass: V11.0 : 27370401
UNSPSC: 39121521
