General Information
Extended Product Type: OT160G03P
Product ID: 1SCA135139R1001
EAN: 6417019638706

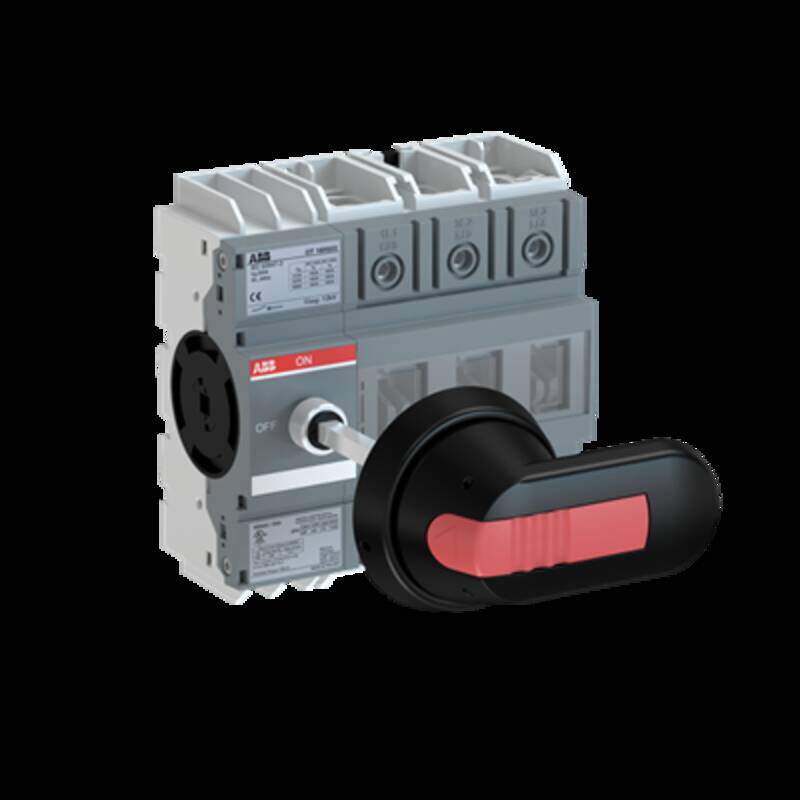

Catalog Description: OT160G03P SWITCH-DISCONNECTOR
Long Description: 3-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85365080
Country of Origin: Finland
Dimensions
Product Net Width: 123 mm
Product Net Height: 130 mm
Product Net Depth / Length: 73 mm
Product Net Weight: 0.9 kg
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 160 mm
Package Level 1 Depth / Length: 244 mm
Package Level 1 Height: 96 mm
Package Level 1 Gross Weight: 1 kg
Package Level 1 EAN: 6417019638706
Technical
Cable Cross-Section: Cu 10 … 70 mm²
Color: Grey
Conventional Free-air Thermal Current (Ith): Θ = 40 °C 160 A
Conventional Thermal Current (Ithe): Fully Enclosed 160 A
Distance Between Phases: Standard
Handle Color: Black
Mechanical Durability: 20000
Mounting Type: Base mounting
Number of Poles: 3P
Operating Mode: Front and Side
Position of Line Terminals: Top In – Bottom Out
Bottom In – Top Out
Power Loss: at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc): (200 A fuse, 500 V) 100 kA
(200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp): 12 kV
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie): (380 … 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-22A (Ie): (380 … 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie): (380 … 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe): (220 … 240 V) 45 kW
(400 … 415 V) 75 kW
(500 V) 90 kW
(690 V) 132 kW
Rated Operational Voltage: Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm): (690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 4 kA
Special Functions: No
Standards: IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism: Mechanism at the End of the Switch
03 (Left Side)
Terminal Type: Screw Terminals
Tightening Torque: acc. IEC 60947-1 6 N·m
Technical UL/CSA
Maximum Operating Voltage UL/CSA: 600 V
Ampere Rating: 125 A
Horsepower Rating UL/CSA: (240 V AC) Single Phase 20 Hp
(440 … 480 V AC) Single Phase 30 Hp
Tightening Torque UL/CSA: 53 in·lb
Environmental
Degree of Protection: Front IP20
Pollution Degree: 3
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
External Classifications and Standards
Object Classification Code: Q
ETIM 9: EC000216 – Switch disconnector (low voltage)
ETIM 10: EC000216 – Switch disconnector (AC)
UNSPSC: 39122233
IDEA Granular Category Code (IGCC): 5290 >> Disconnect switch
eClass: V11.1 : 27371403
E-Number (Finland): 3638769
E-Number (Norway): 4372122
E-Number (Sweden): 3171058
