Output module 4x 10A /230V~, KNX

Description

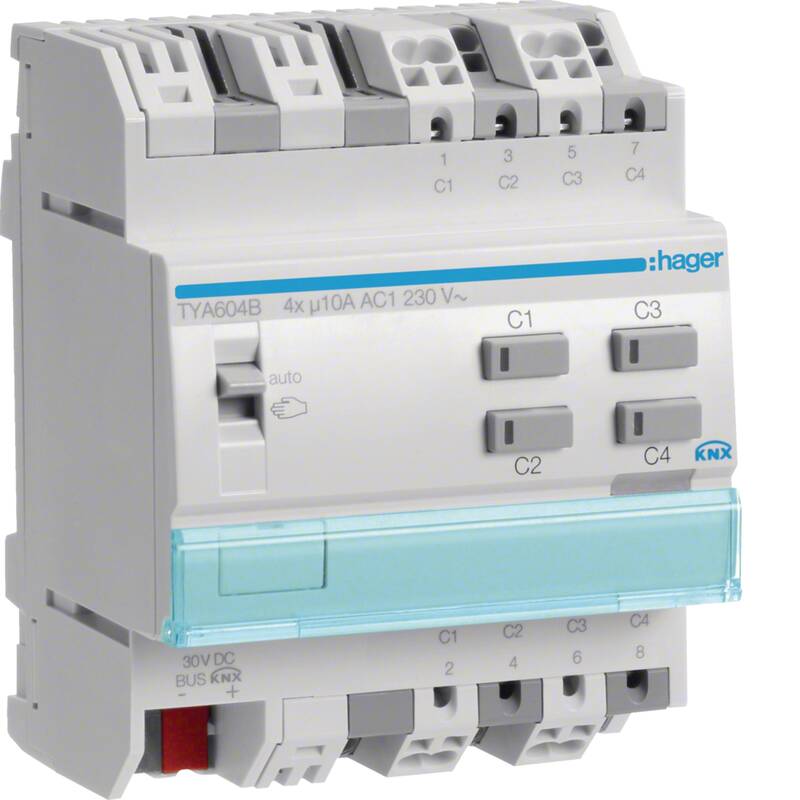

Output module 4x 10A /230V~, KNX TYA604B

EAN: 3250616059856

Packaging: 1 Piece

Technical properties

Connectivity

With bus system KNX: Yes

With bus system KNX radio: No

Settings

Supported config­ur­a­tion mode: ETS

Dimen­sions

Height: 90 mm

Width: 70 mm

Number of width units: 4

Mater­ials

Colour: Light grey

Equip­ment

Radio frequency bidirec­tional: No

With switch for manual switch: Yes

Elec­tric current

Rated current: 10 A

Bus current consump­tion while idle: 3 mA

Frequency

Frequency: 50 – 60 Hz

Power

Power incan­des­cent lamp 230 V: 1200 – 1200 W

Output power: 1200 W

230 V incan­des­cent and halogen lamp: 1200 W

Voltage

Rated oper­a­tional voltage Ue: 230 – 230 V

System supply voltage: 30 V DC Via bus

Oper­ating voltage over bus: 21 – 32 V

Safety

Ingress Protec­tion (IP) class: IP20

Use condi­tions

Oper­ating temper­ature: -5 – 45 °C

Connec­tion

Cross-sec­tion rigid conductor: 0.75 – 2.5 mm²

Cross-sec­tion flex­ible conductor: 0.75 – 2.5 mm²

Texts

Func­tion: With safety func­tions e.g. for wind, rain, alarm, With posi­tioning func­tion for blind and lamella posi­tion, With sun shade func­tion

Type of connec­tion: With quick­con­nect plug-in terminals
