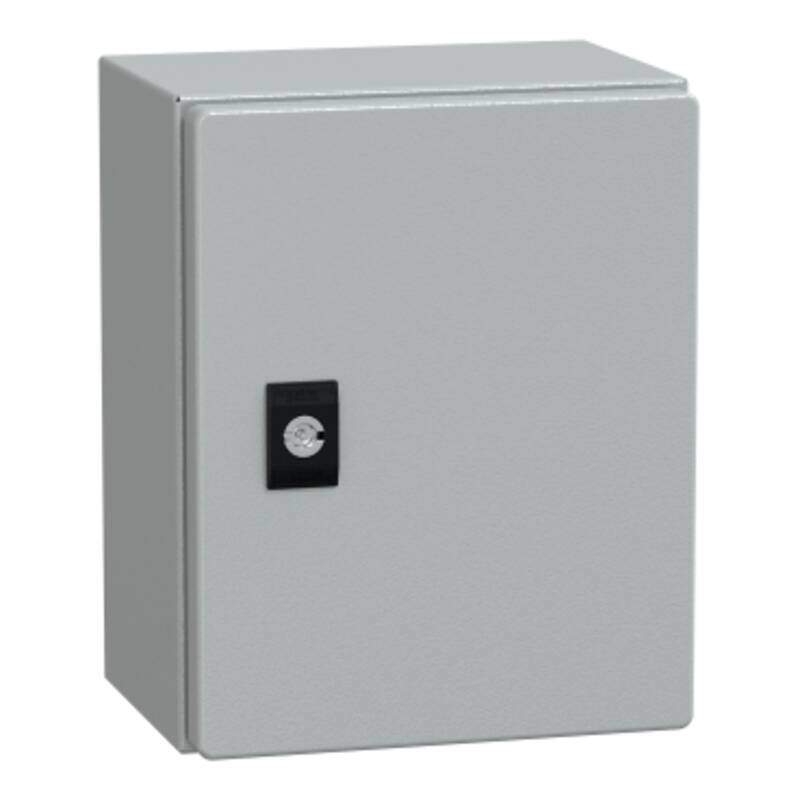

PanelSeT CRN plain door with mount.plate. H250xW200xD150 IP66 IK10 RAL7035..
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 200 mm x (H) 250 mm x (D) 150 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified.
Specifications
Range: PanelSeT
Product name: PanelSeT CRN
Application: Multi-purpose
Category: Compact enclosure
Enclosure nominal height: 250 mm
Enclosure nominal width: 200 mm
Enclosure nominal depth: 150 mm
Installation accessory type: Wall-mounting
Device composition: 1 bodyn1 cable gland platen1 door with lockn1 mounting plate
Door type: Solid
Mounting plate description: Plain
body type: Back welded with double profile forming a protected sealed areanSides made from a single folded section
Number of doors: Front face 1
Door opening side: Reversible 120 °)
Lock type: 3 mm double-bar lock
Type of gland plate: Standard
Accessibility for operation: Front
Removable parts: Door by hingesnCable gland plate by screwsnMounting plate by fixing element
Material: Enclosure steelnMounting plate galvanised steel
Surface finish: Enclosure epoxy-polyester powder
color: Enclosure Gray RAL 7035)
Standards: IEC 62208nULnCUL
Product Certifications: ULncULnDNV-GL
Net Weight: 3.274 kg
IP degree of protection: IP66 IEC 60529
IK degree of protection: IK10 IEC 62262
GTIN: 3606480212628
Country of origin: ES
Warranty (in months): 18
