PanelSeT CRN plain door with mount.plate. H600xW400xD250 IP66 IK10 RAL7035..
SKU: NSYCRN64250P

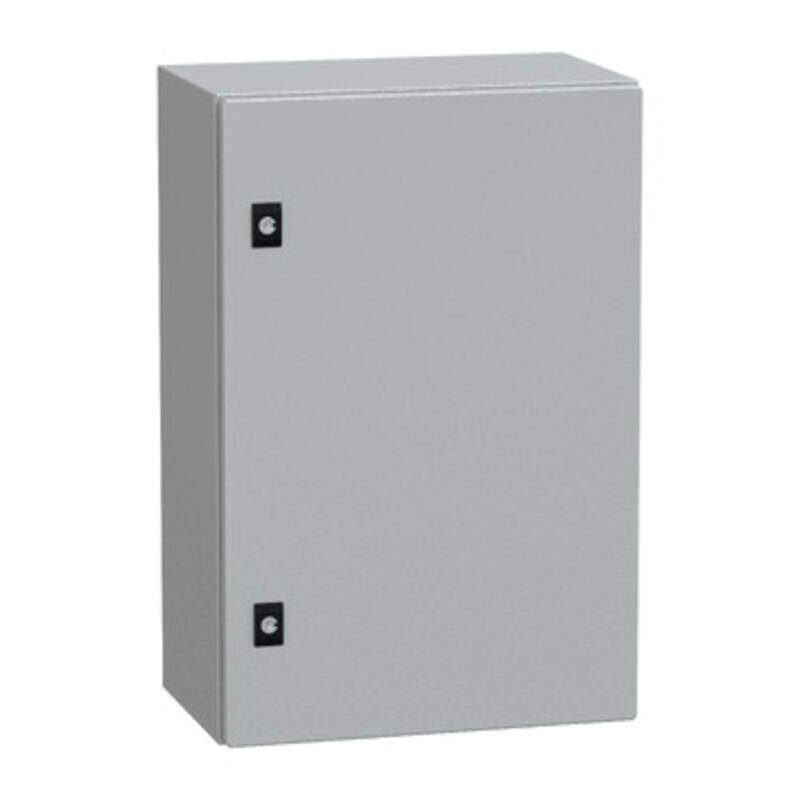

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 600 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified.
Specifications
Range: PanelSeT
Product name: PanelSeT CRN
Application: Multi-purpose
Category: Compact enclosure
Enclosure nominal height: 23.6 in (600 mm)
Enclosure nominal width: 15.7 in (400 mm)
Enclosure nominal depth: 9.8 in (250 mm)
Installation accessory type: Wall-mounting
Device composition: 1 body
1 cable gland plate
1 door with lock
1 mounting plate
Door type: Solid
Mounting plate description: Plain
body type: Sides made from a single folded section
Back welded with double profile forming a protected sealed area
Number of doors: Front face 1
Door opening side: Reversible 120 °)
Lock type: 3 mm double-bar lock
Type of gland plate: Standard
Accessibility for operation: Front
Removable parts: Door by hinges
Cable gland plate by screws
Mounting plate by fixing element
Material: Enclosure steel
Mounting plate galvanised steel
Surface finish: Enclosure epoxy-polyester powder
color: Enclosure Gray RAL 7035)
Standards: IEC 62208
UL
CUL
Product Certifications: cUL
UL
DNV-GL
Net Weight: 30.448 lb(US) (13.811 kg)
IP degree of protection: IP66 IEC 60529
IK degree of protection: IK10 IEC 62262
GTIN: 3606480212123
Country of origin: ES
Warranty (in months): 18
