Description

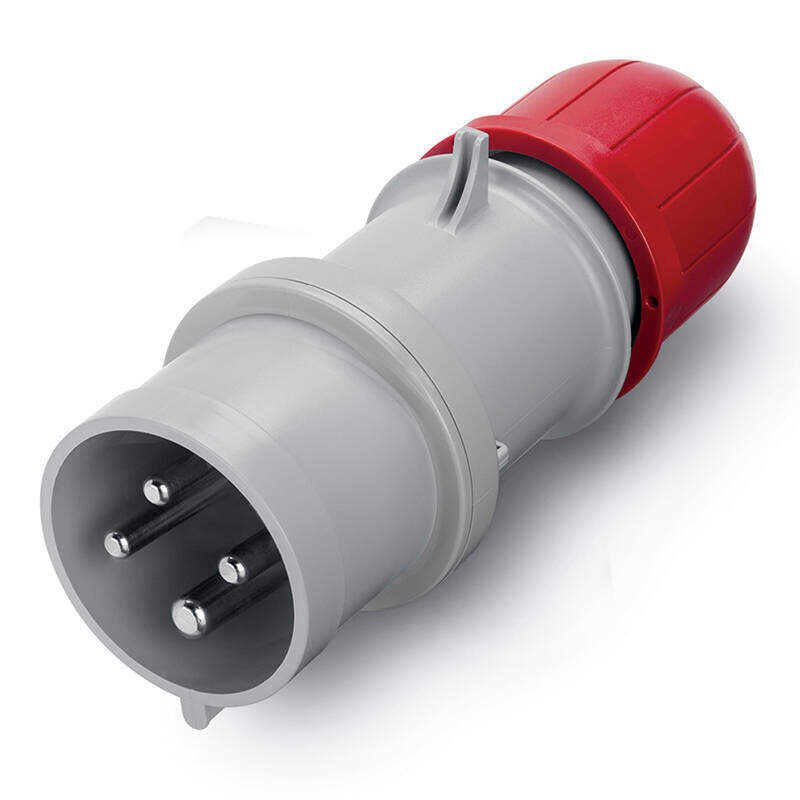

PLUG – 16A 3P+E 6h 380-415V 60Hz 50Hz Screw terminals
Cod. 213.1636
The plug from the OPTIMA Series is designed for a rated voltage of 380-415V and a current of 16A. It features 3P+E poles and operates efficiently at both 50Hz and 60Hz frequencies. With a protection degree of IP44/IP54, it offers reliable performance in various environments. The plug is equipped with screw terminals and is compatible with straight type outlets. Additionally, a version in black is available by appending “.K” to the catalogue number. This plug is engineered to meet the demands of professional applications, ensuring dependable functionality and versatility.
Tech Data
Commercial Series: OPTIMA Series
Synthetical description: PLUG
Mounting version: PORTABLE
Rated current: 16A
Poles: 3P+E
Hour position: 6h
Rated voltage: 380-415V
Working frequency: 60Hz, 50Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Splash proof
Protection degree IP: IP44/IP54
Protection degree IK: IK08
Types of available outlets: STRAIGHT
Terminals: Screw terminals
Contact material: CuZn (brass)
Surface treatment contacts: Nickel-plated
Cable entry: CABLE GLAND
Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.
Product
EAN code: 8001636222394
INTRASTAT code: 8536699099
Net weight: 0.145 KG
Minimum Quantity: 10
Packaging
Packaging Box
Quantity: 10
EAN code: 8001636671574
Depth: 295.0 MM
Width: 115.0 MM
Height: 160.0 MM
Volume: 5428.0 CCM
Packaging Carton
EAN code: 8001636677866
Quantity: 50
Depth: 335.0 MM
Width: 250.0 MM
Height: 430.0 MM
Volume: 36012.5 CCM
