Description

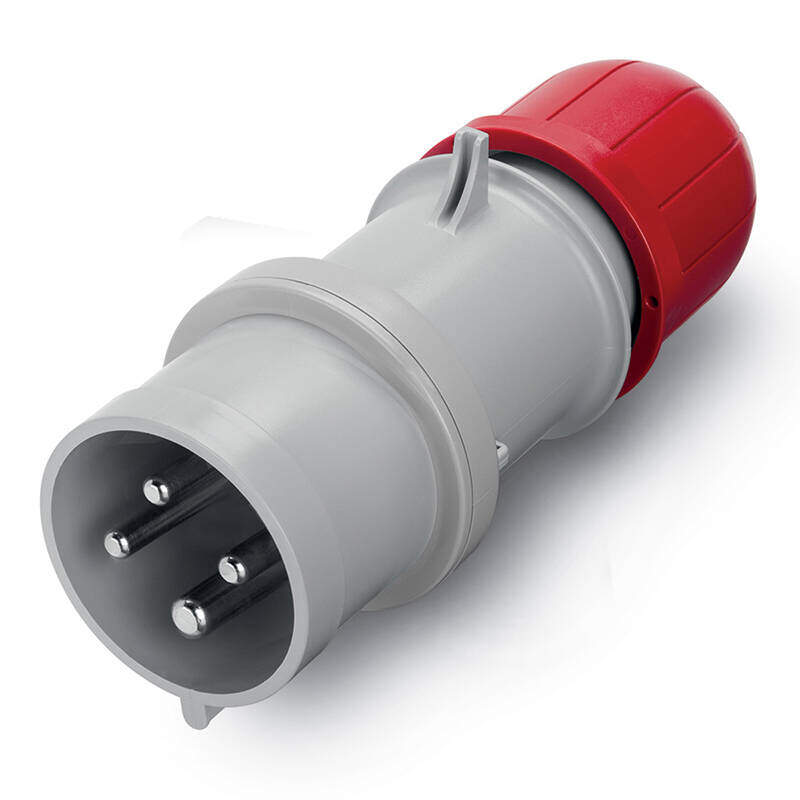

PLUG 32A 3P+E 6h 380-415V 60Hz 50Hz Screw terminals
The plug from the OPTIMA Series is designed for a rated voltage of 380-415V and a current of 32A. It features 3P+E poles and operates efficiently at both 50Hz and 60Hz frequencies. With a protection degree of IP44/IP54, it offers reliable performance in various environments. The plug is equipped with screw terminals and is compatible with straight type outlets. Additionally, a version in black is available by appending “.K” to the catalogue number. This plug is engineered to meet the demands of professional applications, ensuring dependable connectivity and performance.
Commercial Series:
OPTIMA Series
Synthetical description:
PLUG
Mounting version:
PORTABLE
Rated current:
32A
Poles:
3P+E
Hour position:
6h
Rated voltage:
380-415V
Working frequency:
60Hz
50Hz
Colour:
RED
Material:
THERMOPLASTIC
Protection degree:
Splash proof
Protection degree IP:
IP44/IP54
Protection degree IK:
IK08
Types of available outlets:
STRAIGHT
Terminals:
Screw terminals
Contact material:
CuZn (brass)
Surface treatment contacts:
Nickel-plated
Cable entry:
CABLE GLAND
Catalogue notes:
Version also available in black; just add “.K” at the end of the catalogue number.
EAN code:
8001636222455
INTRASTAT code:
8536699099
Net weight:
0.252 KG
