Description

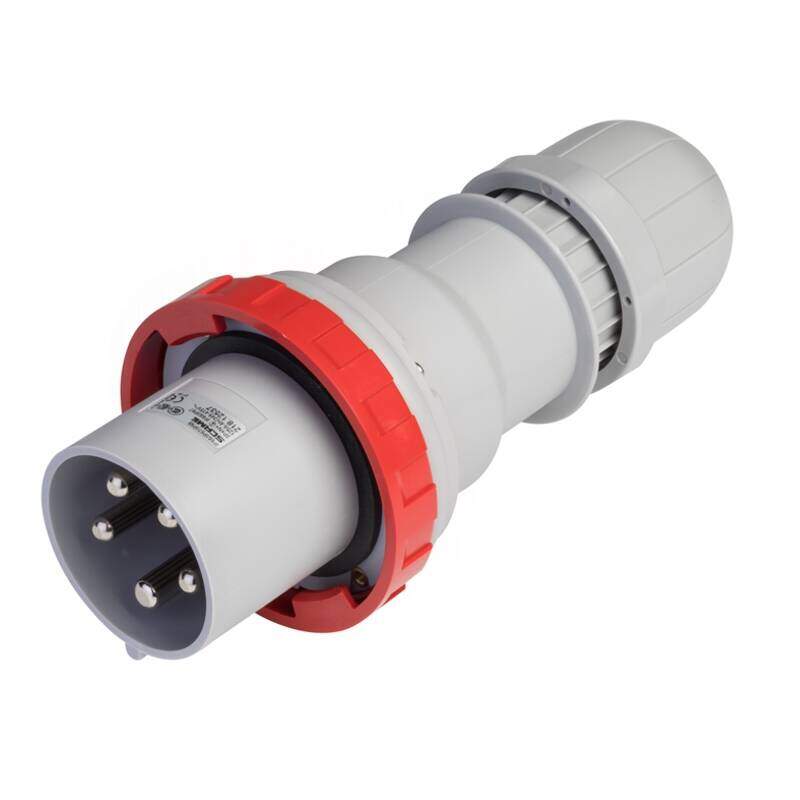

PLUG – 63A 3P+N+E 6h 346-415V 60Hz 50Hz Mantle terminals
Cod. 218.6337
The OPTIMA Series plug, designed for high-performance electrical applications, operates at a rated voltage of 346-415V and a rated current of 63A. It features a 3P+N+E configuration with a 6h hour position, compatible with both 50Hz and 60Hz frequencies. the plug offers superior protection with an ip66/ip67/ip69 rating, ensuring resilience against dust and water ingress. Equipped with mantle terminals, it facilitates secure and efficient connections. Available in a straight outlet type, this plug incorporates the EASY-PLUG feature for enhanced usability. A black version is also available by appending “.K” to the catalogue number, catering to diverse industrial requirements.
Commercial Series: OPTIMA Series
Synthetical description: PLUG
Mounting version: PORTABLE
Rated current: 63A
Poles: 3P+N+E
Hour position: 6h
Rated voltage: 346-415V
Working frequency: 60Hz, 50Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Watertight
Protection degree IP: IP66/IP67/IP69
Protection degree IK: IK08
Types of available outlets: STRAIGHT
Terminals: Mantle terminals
Contact material: CuZn (brass)
Surface treatment contacts: Nickel-plated
Cable entry: CABLE GLAND
Notes: EASY-PLUG
Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.
EAN code: 8001636224596
INTRASTAT code: 8536699099
Net weight: 0.644 KG
