Description

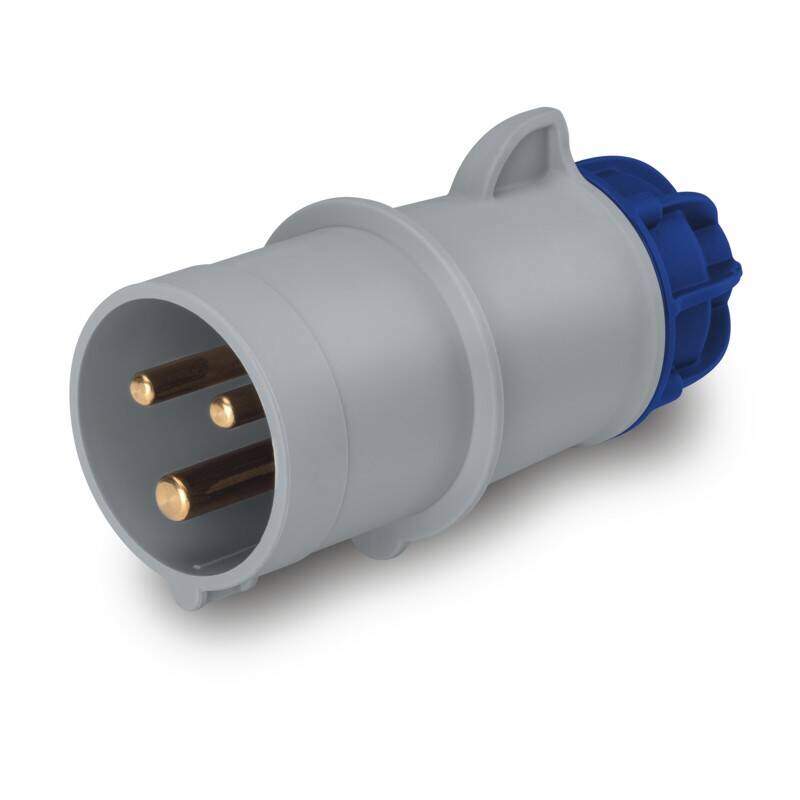

PLUG
SKU: 214.1633
The plug from the XENIA Series is designed for a rated voltage of 200-250V and a current of 16A. Featuring 2P+E poles and a 6h hour position, it operates efficiently at both 50Hz and 60Hz frequencies. With a protection degree of IP44/IP54, it offers reliable performance in various environments. The plug is equipped with screw terminals and is compatible with straight type outlets. This product is engineered to meet the demands of professional applications, ensuring dependable functionality and durability.
Tech Data
Commercial Series: XENIA Series
Synthetical description: PLUG
Mounting version: PORTABLE
Rated current: 16A
Poles: 2P+E
Hour position: 6h
Rated voltage: 200-250V
Working frequency: 60Hz, 50Hz
Colour: BLUE
Material: THERMOPLASTIC
Protection degree: Splash proof
Protection degree IP: IP44/IP54
Protection degree IK: IK08
Types of available outlets: STRAIGHT
Terminals: Screw terminals
Contact material: CuZn (brass)
Cable entry: CABLE GLAND
Halogen free: HALOGEN FREE
Product
EAN code: 8001636283791
INTRASTAT code: 8536699099
Net weight: 0.085 KG
Minimum Quantity: 50
Packaging
Packaging Carton EAN code: 8001636734194
Quantity: 50
Depth: 270.0 MM
Width: 210.0 MM
Height: 315.0 MM
Volume: 17860.5 CCM
