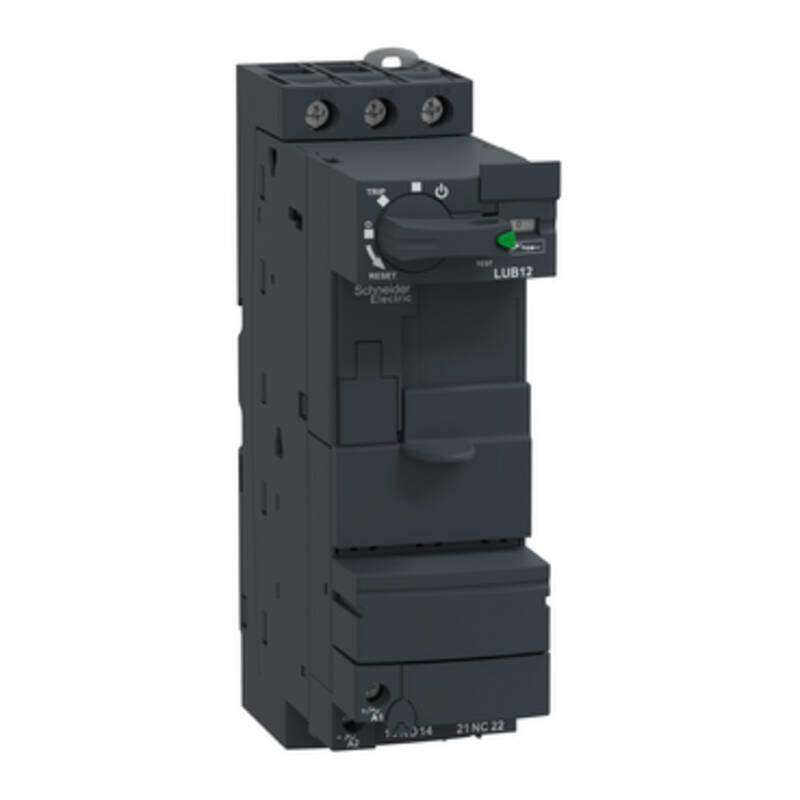

Power base, TeSys Ultra, 12 A, screw clamps control
SKU: LUB12
Main
Range: TeSys
Product name: TeSys Ultra
Device short name: LUB
Product or Component Type: Non reversing power base
Device Application: Motor control
Motor protection
Poles description: 3P
Suitability for isolation: Yes
[Ue] rated operational voltage: 690 V AC power circuit
Network frequency: 40…60 Hz
[Ith] conventional free air thermal current: 12 A
[Ie] rated operational current: 12 A <= 440 V
12 A 500 V
9 A 690 V
Utilisation category: AC-43
AC-44
AC-41
[Ics] rated service breaking capacity: 50 kA 230 V
50 kA 440 V
10 kA 500 V
4 kA 690 V
Auxiliary contact composition: 1 NO + 1 NC
Auxiliary contacts type: Linked contacts 1 NO + 1 NC) IEC 60947-4-1
Mirror contact 1 NC) IEC 60947-1
[Uc] control circuit voltage: 24 V AC 50/60 Hz
24 V DC
48…72 V AC 50/60 Hz
48…72 V DC
110…240 V AC 50/60 Hz
110…220 V DC
Complementary
Typical current consumption: 130 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD
140 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD
150 mA 24 V DC I maximum while closing with LUCM
280 mA 110…220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD
280 mA 110…240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD
280 mA 48…72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD
280 mA 48…72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD
35 mA 110…220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD
35 mA 110…240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD
35 mA 48…72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD
35 mA 48…72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD
60 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD
70 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD
70 mA 24 V DC I rms sealed with LUCM
Heat dissipation: 2 W control circuit with LUCA, LUCB, LUCC, LUCD
1.7 W control circuit with LUCM
Safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Operating time: 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit
50 ms >= 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit
60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit
70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit
75 ms closing with LUCM control circuit
Mechanical durability: 15 Mcycles
maximum operating rate: 3600 cyc/h
Product Certifications: CE
UL
CSA
CCC
EAC
ASEFA
ATEX
Marine
Standards: EN 60947-6-2
IEC 60947-6-2
UL 60947-4-1, with phase barrier
CSA C22.2 No 60947-4-1, with phase barrier
[Ui] rated insulation voltage: 690 V IEC 60947-6-2 3)
600 V UL 60947-4-1
600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kVIEC 60947-6-2
Safe separation of circuit: 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N
400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
Fixing mode: Clipped (DIN rail)
Screw-fixed (plate)
Width: 45 mm
Height: 154 mm
Depth: 126 mm
Net Weight: 0.9 kg
Compatibility code: LUB
Environment
IP degree of protection: IP20 IEC 60947-1 front panel and wired terminals)
IP20 IEC 60947-1 other faces)
IP40 IEC 60947-1 front panel outside connection zone)
Protective treatment: TH IEC 60068
Ambient air temperature for operation: -13…140 °F (-25…60 °C) with LUCM
-13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Fire resistance: 1760 °F (960 °C) parts supporting live components IEC 60695-2-12
1202 °F (650 °C) IEC 60695-2-12
Operating altitude: 6561.68 ft (2000 m)
Shock resistance: 10 gn power poles open IEC 60068-2-27
15 gn power poles closed IEC 60068-2-27
Vibration resistance: 2 gn 5…300 Hz) power poles open IEC 60068-2-27
4 gn 5…300 Hz) power poles closed IEC 60068-2-27
Resistance to electrostatic discharge: 8 kV 3 in open air IEC 61000-4-2
8 kV 4 on contact IEC 61000-4-2
Non-dissipating shock wave: 1 kV serial mode 24…240 V AC IEC 60947-6-2
1 kV serial mode 48…220 V DC IEC 60947-6-2
2 kV common mode 24…240 V AC IEC 60947-6-2
2 kV common mode 48…220 V DC IEC 60947-6-2
Resistance to fast transients: 2 kV 3 serial link IEC 61000-4-4
4 kV 4 all circuits except for serial link IEC 61000-4-4
Resistance to radiated fields: 9.1 V/m (10 V/m) 3 IEC 61000-4-3
Immunity to radioelectric fields: 10 V IEC 61000-4-6
Immunity to microbreaks: 3 ms control circuit
Immunity to voltage dips: 70 % / 500 ms IEC 61000-4-11
Ordering and shipping details
GTIN: 3389110362770
Country of origin: FR
Contractual warranty
Warranty (in months): 18
