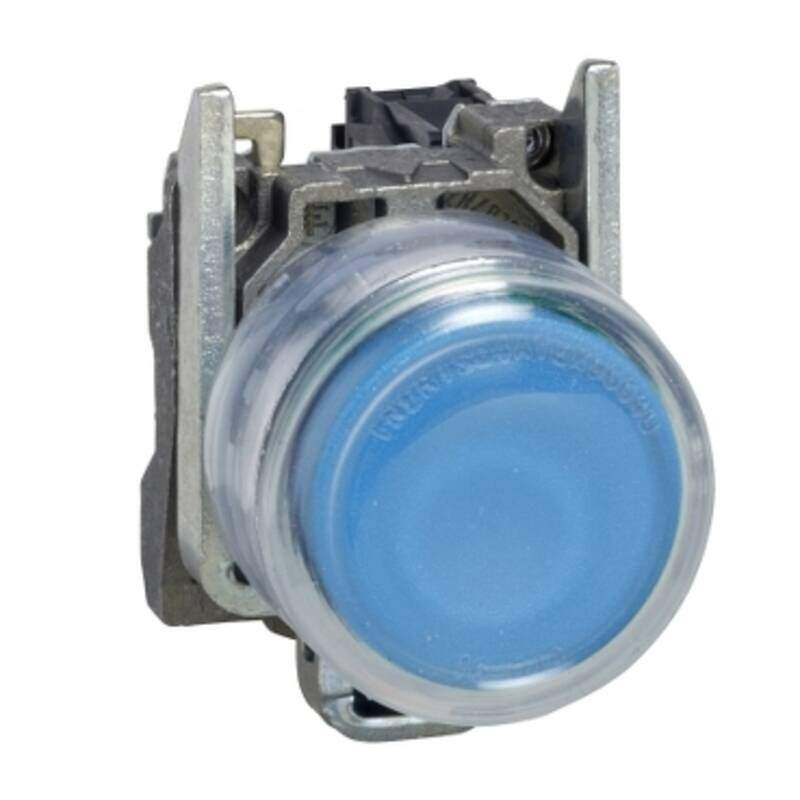

Push button, Harmony XB4, metal, projecting, blue, 22mm, spring return, booted, unmarked, 1NO
SKU: XB4BP61
Description: This Harmony XB4 modular blue push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Specifications
Range of Product: Harmony XB4
Device short name: XB4
Product or Component Type: Push-button
Product Compatibility: Not compatible with legend holder
Bezel material: Chromium plated metal
Fixing collar material: Zamak
Mounting diameter: 22.5 mm
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
Type of operator: spring return
Operator profile: Blue projecting, unmarked
Head type: Standard
Operator additional information: Clear boot
Contacts type and composition: 1 NO
Contact operation: Slow-break
Connections – terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end IEC 60947-1
Main
Height: 47 mm
Width: 30 mm
Depth: 61 mm
Terminals description ISO n°1: (13-14)NO
Net Weight: 0.082 kg
Resistance to high pressure washer: 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage: Standard contacts
Positive opening: Without
Operating travel: 0.1 in (2.6 mm) NO changing electrical state)
0.2 in (4.3 mm) total travel)
Operating force: 3.8 N NO changing electrical state
Mechanical durability: 10000000 cycles
Tightening torque: 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head: Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
Contacts material: Silver alloy (Ag/Ni)
Short-circuit protection: 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Ui] rated insulation voltage: 600 V
[Uimp] rated impulse withstand voltage: 6 kV
[Ie] rated operational current: 3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability: 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability: Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Device presentation: Complete product
Complementary
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
Overvoltage category: Class I conforming to IEC 60536
IP degree of protection: IP66 IEC 60529
IP67
Enclosure Type: UL type 4X/13
IK degree of protection: IK06 conforming to IEC 50102
Standards: CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-5-5
UL 508
IEC 60947-5-1
IEC 60947-5-4
IEC 60947-1
JIS C8201-1
Product Certifications: CSA
LROS (Lloyds register of shipping)
BV
UL Listed
DNV
Vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Environment
Category: US10CS222468
Discount Schedule: 0CS2
GTIN: 3389110118940
Returnability: Yes
Country of origin: FR
Ordering and shipping details
Unit Type of Package 1: PCE
Nbr. of units in pkg.: 1
Package 1 Height: 8.800 cm
Package 1 Width: 3.400 cm
Package 1 Length: 5.400 cm
Package 1 Weight: 85.900 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 8.800 cm
Package 2 Width: 3.400 cm
Package 2 Length: 27.000 cm
Package 2 Weight: 430.000 g
Unit Type of Package 3: S02
Number of Units in Package 3: 50
Package 3 Height: 15.000 cm
Package 3 Width: 30.000 cm
Package 3 Length: 40.000 cm
Package 3 Weight: 4.529 kg
Contractual warranty
Warranty: 18 months
