Description

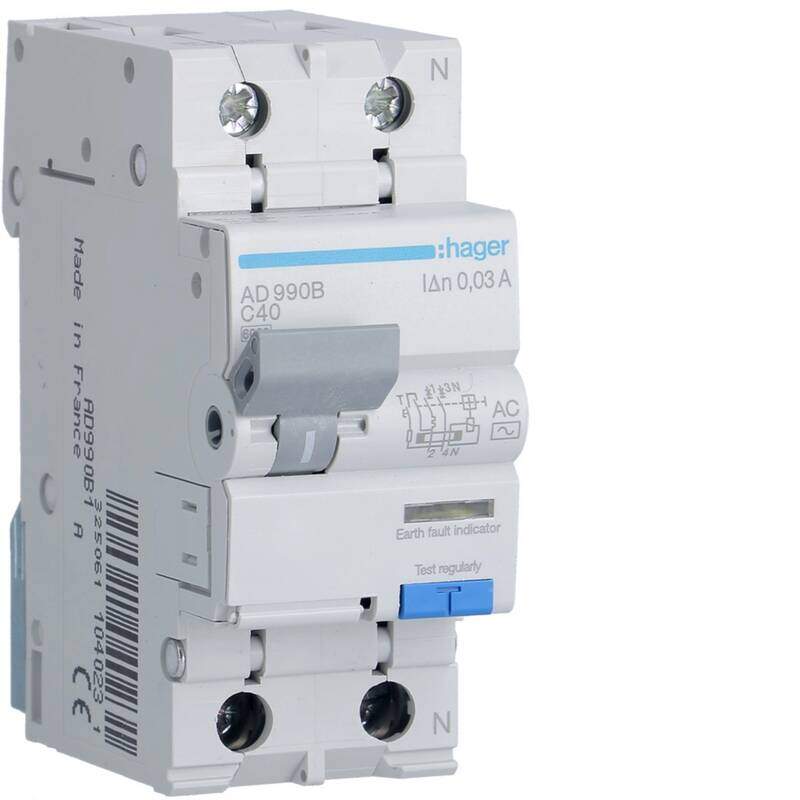

RCBO 1P+N 6kA C-40A 30mA AC AD990B
Brand: Hager
Model: AD990B
EAN: 3250611040231
Technical Characteristics
Number of protected poles: 1
Curve: C
Residual current type: AC
IP Rating: IP20
Rated short-circuit breaking capacity Icn: 6 kA
Rated insulation voltage Ui: 2000 V
Rated impulse withstand voltage Uimp: 6000 V
Rated operational voltage Ue: 240 V
Rated current: 40 A
Rated residual operating current: 30 mA
Power dissipation: 14.20 W
Frequency: 50 Hz
Number of modules: 2
Dimensions: 83 mm (Height) x 35 mm (Width) x 68 mm (Depth)
