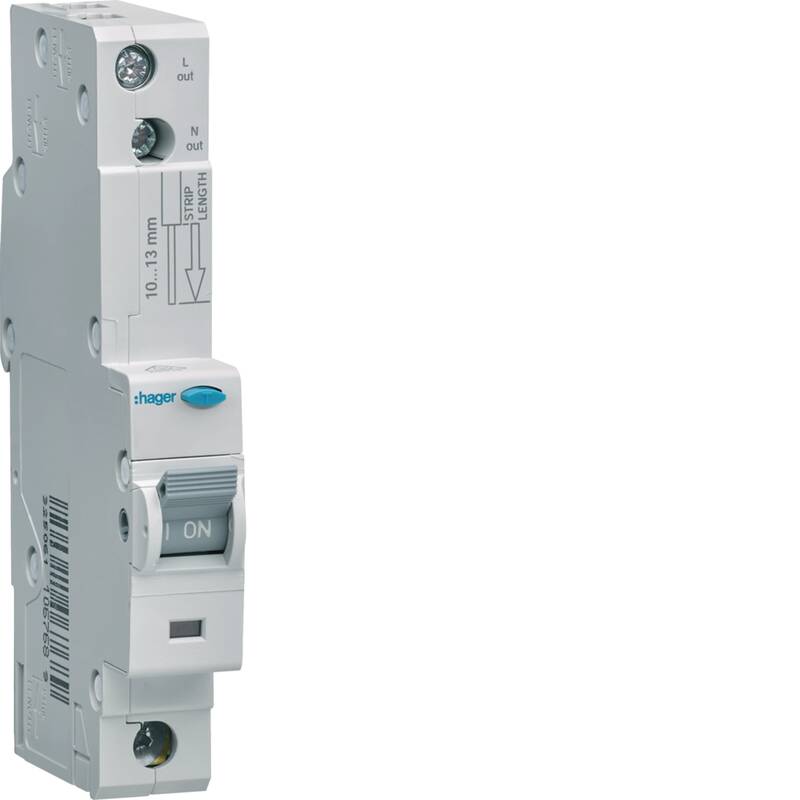

RCBO Electronic 1M 1P 10kA C-32A 30mA A Class AD132B
EAN: 3250611068617
Packaging: 1 Piece
Status: Obsolete
Follow-up product: ADC232B
Technical properties
Architecture
Type of pole: 1P
Curve: C
Electric current
Rated current: 32 A
Rated residual operating current Idn: 30 mA
Rated current -25°C: 40,06 A
Rated current at -20°C: 39,39 A
Rated current -15°C: 38,72 A
Rated current -10°C: 38,03 A
Rated current -5°C: 37,33 A
Rated current at 0°C: 36,62 A
Rated current 5°C: 35,89 A
Rated current 10°C: 35,14 A
Rated current 15°C: 34,39 A
Rated current at 20°C: 33,61 A
Rated current 25°C: 32,81 A
Rated current 30°C: 32 A
Rated current 35°C: 31,16 A
Rated current at 40°C: 30,31 A
Rated current at 50°C: 28,51 A
Rated current 55°C: 27,57 A
Rated current 60°C: 26,60 A
Correction factor of rating current for 2 devices placed side by side: 1
Correction factor of rating current for 3 devices placed side by side: 0,95
Correction factor of rating current for 4 and 5 devices placed side by side: 0,90
Correction factor of rating current for 6 devices placed side by side: 0,85
Min./max. threshold value of the AC thermal operation: 1,13 – 1,45 A
Safety
Residual current type: A
Ingress Protection (IP) class: IP20
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1: 10 kA
Voltage
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 4000 V
Max. operating voltage: 253 V
Rated operational voltage Ue: 230 – 240 V
Overvoltage category according to IEC 60947-1: 3
Power
Total power loss under IN: 9,63 W
Frequency
Frequency: 50 – 50 Hz
Use conditions
Max. Altitude: 2000 m
Class of energy limitation I²t: 3
Operating temperature: -5 – 60 °C
Storage/transport temperature: -25 – 60 °C
Endurance
Electric endurance in number of cycles: 2000
Number of mechanical operations: 1000
Connection
Cross-section of input with screws, for flexible conductors: 1 – 16 mm²
Cross-section of input with screws, for massive conductors: 1 – 25 mm²
Cross-section of input and output with screws, for flexible conductors: 1 – 16 mm²
Cross-section of input and output with screws, for massive conductors: 1 – 25 mm²
Installation, mounting
Nominal tightening torque: 2,10 – 2,10 Nm
Capacity
Number of modules: 1
Dimensions
Height: 115 mm
Width: 17,50 mm
Depth: 70 mm
Environmental value
RoHS conform: Yes
