Description

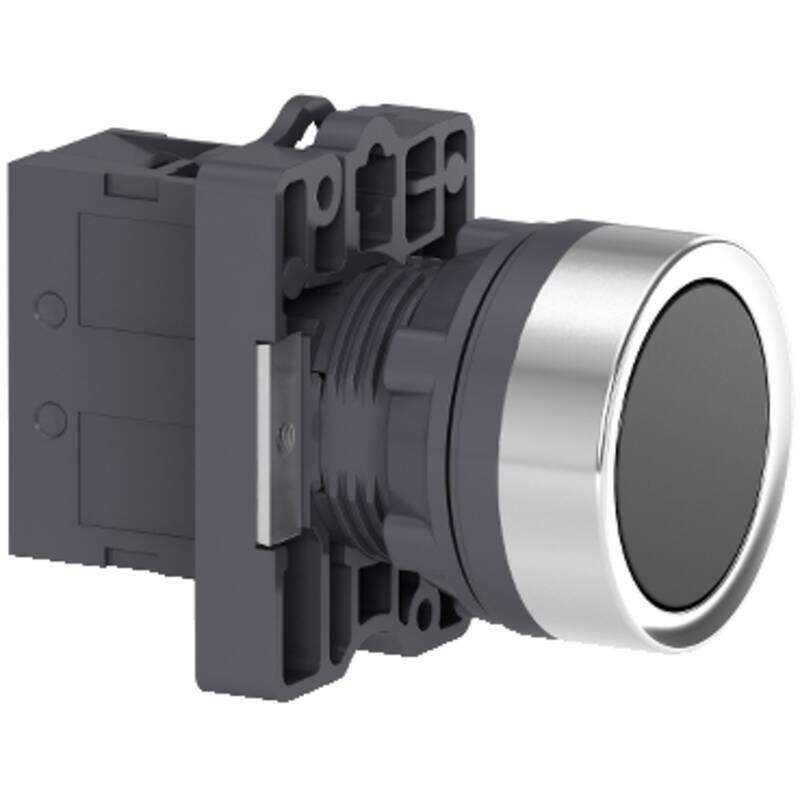

round black push-button Ø 22 – flush spring return – 1NO
SKU: XA2EA21
Description: This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular flush black pushbutton. This pushbutton operates with a spring return / impulse mechanism. This flush pushbutton provides an ergonomic interface for controlling machines. It has 1 NO contact with slow-break operation. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Specifications
Range of product: Harmony XA2
Product or component type: Complete push-button
Device short name: XA2
Device presentation: Complete product
Component name: XA2E
Bezel material: Plastic
Fixing collar material: Plastic
Mounting diameter: 22.5 mm
Sale per indivisible quantity: 1
Protective treatment: TC
Operating position: Any position
Fixing center: >= 30 x 40 mm (panel) – thickness: 1…5 mm
Fixing mode: Fixing nut: 2…2.4 N.m
Shape of signaling unit head: Round
Type of operator: spring return
Operator profile: Black flush, unmarked
Contacts type and composition: 1 NO
Contact operation: Slow-break
Mechanical durability: 1500000 cycles
Connections – terminals: Screw clamp terminal, <= 2 x 1.5 mm²
Screw clamp terminal, <= 1 x 2.5 mm²
Screw clamp terminal, >= 1 x 0.5 mm²
Faston terminals, connection size: 6.3 mm
Tightening torque: 0.8 N.m
Short-circuit protection: 10 A gL fuse conforming to IEC 60269-1
[Ith] conventional free air thermal current: 10 A
[Ui] rated insulation voltage: 600 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-1
[Ie] rated operational current: 3 A at 240 V, AC-15, A600
0.27 A at 250 V, DC-13, Q600
Electrical durability: 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5
Electrical reliability: Λ < 10exp(-8) at 24 V
Width: 30 mm
Height: 42 mm
Depth: 54.7 mm
Net weight: 0.032 kg
Cap/operator or lens colour: Black
Type of operator: Spring return
Environment
Ambient air temperature for storage: -40…70 °C
Ambient air temperature for operation: -25…55 °C
Overvoltage category: Class I conforming to IEC 536
IP degree of protection: IP65 conforming to IEC 60529
IK degree of protection: IK03 conforming to IEC 60529
Standards: IEC 60947-5-1
GB 14048.5
GB 14048.1
IEC 60947-1
Product certifications: CE
CCC
Vibration resistance: 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6
Shock resistance: 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.400 cm
Package 1 Width: 3.900 cm
Package 1 Length: 6.100 cm
Package 1 Weight: 30.000 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 7.500 cm
Package 2 Width: 18.000 cm
Package 2 Length: 19.000 cm
Package 2 Weight: 328.000 g
Unit Type of Package 3: S02
Number of Units in Package 3: 100
Package 3 Height: 15.000 cm
Package 3 Width: 30.000 cm
Package 3 Length: 40.000 cm
Package 3 Weight: 3.530 kg
Contractual warranty
Warranty (in months): 18
