Description
General Information

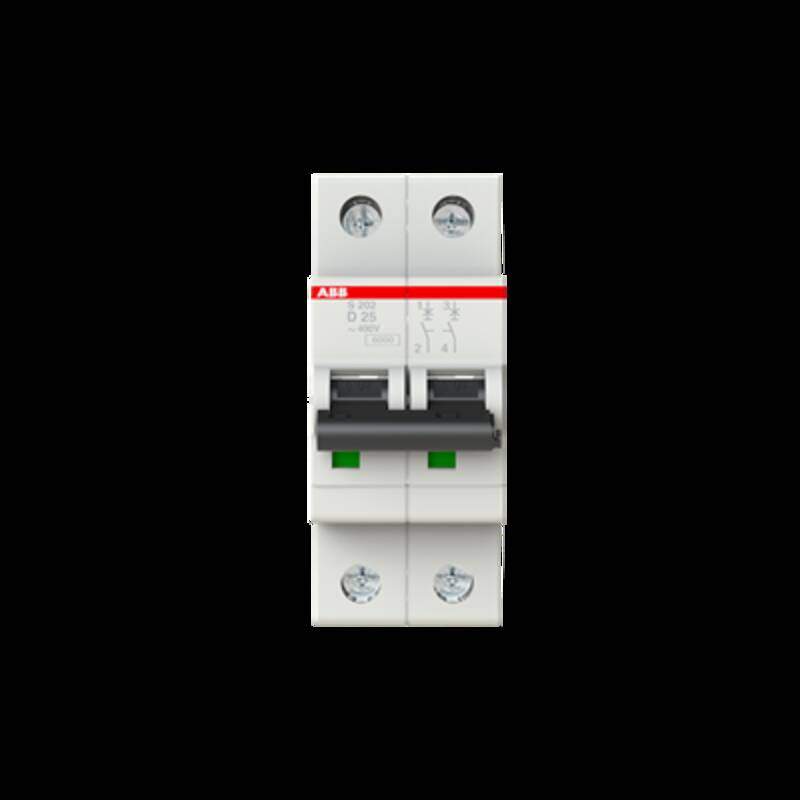

Extended Product Type: S202-D25
Product ID: 2CDS252001R0251
EAN: 4016779530644
Catalog Description: Miniature Circuit Breaker – S200 – 2P – 25 A – D – (AC) 6 kA
Long Description: System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical
Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Number of Poles: 2P
Number of Protected Poles: 2
Dielectric Test Voltage: 50 / 60 Hz – 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (125 V DC) 10 kA, (230 V AC) 20 kA, (400 V AC) 10 kA, (440 V AC) 10 kA, (48 V DC) 20 kA
Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 15 kA, (400 V AC) 7.5 kA, (440 V AC) 7.5 kA
Power Supply Connection: Arbitrary
Contact Position Indication: Red ON / Green OFF
Energy Limiting Class: 3
Electrical Endurance: 20000 AC cycle
Mechanical Endurance: 20000 cycle
Tightening Torque: 2.8 N·m
Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking: I / O
Actuator Material: Insulation Group II, Black, Sealable
Recommended Screw Driver: Pozidriv 2
Accessories Available: Yes
Connecting Capacity: Busbar 10/10 mm², Flexible with Ferrule 0.75 … 25 mm², Flexible 0.75 … 25 mm², Rigid 0.75 … 35 mm², Stranded 0.75 … 35 mm²
Wire Stripping Length: 12.5 mm
Terminal Type: Screw Terminals
Actuator Type: Toggle
Electrical
Tripping Characteristic: D
Rated Operational Voltage: acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage: Maximum (Incl. Tolerance) 125 V DC, Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp): 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type: AC/DC
Rated Current (In): 25 A
Rated Short-Circuit Capacity: (AC) 6 kA, (DC) 6 kA
Rated Frequency (f): 50 / 60 Hz
Power Loss: 6.2 W, at Rated Operating Conditions per Pole 3.1 W
Overvoltage Category: III
Design
Housing Material: Insulation Group II, RAL 7035
Environmental
Ambient Air Temperature: Operation -25 … +55 °C, Storage -40 … +70 °C
Reference Ambient Air Temperature: 30 °C
Degree of Protection: IP20, Enclosure with Cover IP40
Pollution Degree: 3
Environmental Conditions: 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 %
Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms
Dimensions
Width in Number of Modular Spacings: 2
Product Net Width: 35 mm
Product Net Height: 88 mm
Product Net Depth / Length: 69 mm
Product Net Weight: 0.23 kg
Pole Net Weight: 0.125 kg
Built-In Depth (t2): 69 mm
Ordering
EAN: 4016779530644
Package Level 1 Units: carton 5 piece
Package Level 1 Gross Weight: 1.19 kg
E-Number (Finland): 3217803
E-Number (Sweden): 2100653
Classifications
Object Classification Code: F
ETIM 9: EC000042 – Miniature circuit breaker (MCB)
ETIM 10: EC000042 – Miniature circuit breaker (MCB)
eClass: V11.0 : 27141901
UNSPSC: 39121603
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
