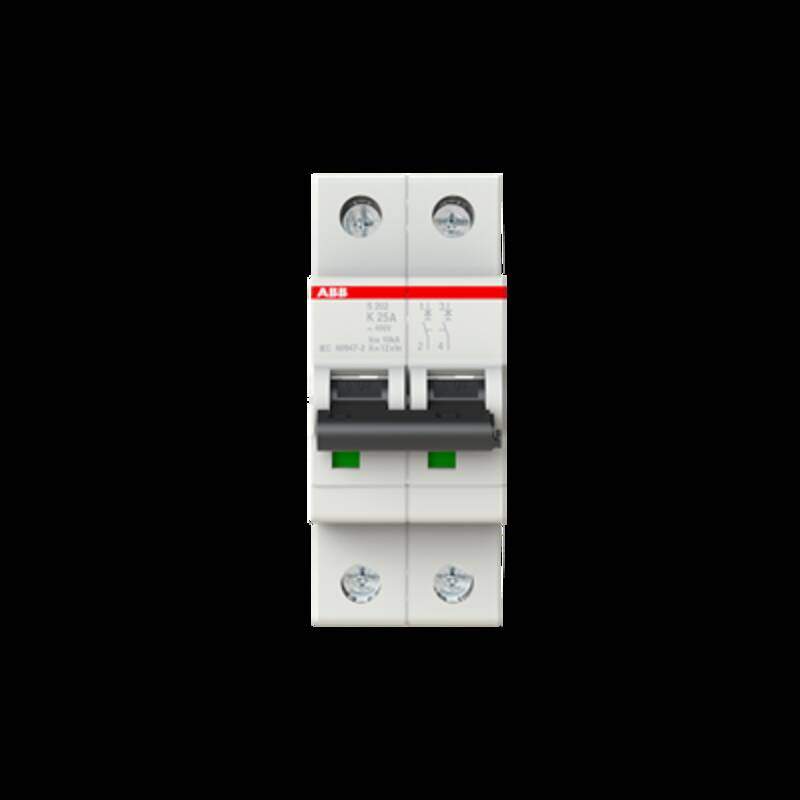

Extended Product Type: S202-K25
Product ID: 2CDS252001R0517
EAN: 4016779507431
Catalog Description: Miniature Circuit Breaker – S200 – 2P – 25 A – K – (AC) 6 kA
Long Description: System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical
Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Number of Poles: 2P
Number of Protected Poles: 2
Tripping Characteristic: K
Rated Current (In): 25 A
Rated Operational Voltage: acc. to IEC 60947-2 440 V AC
Rated Short-Circuit Capacity: (AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (125 V DC) 10 kA
(230 V AC) 20 kA
(400 V AC) 10 kA
(440 V AC) 10 kA
(48 V DC) 20 kA
Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 15 kA
(400 V AC) 7.5 kA
(440 V AC) 7.5 kA
Dielectric Test Voltage: 50 / 60 Hz – 1 min 2 kV
Power Supply Connection: Arbitrary
Contact Position Indication: Red ON / Green OFF
Energy Limiting Class: 3
Electrical Endurance: 20000 AC cycle
Mechanical Endurance: 20000 cycle
Tightening Torque: 2.8 N·m
Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking: I / O
Actuator Material: Insulation Group II, Black, Sealable
Power Loss: 5.8 W
Environmental
Ambient Air Temperature: Operation -25 … +55 °C
Storage -40 … +70 °C
Degree of Protection: IP20
Pollution Degree: 3
Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms
Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 … 150 … 5 Hz
Dimensions
Product Net Width: 35 mm
Product Net Height: 88 mm
Product Net Depth / Length: 69 mm
Product Net Weight: 0.23 kg
Ordering
Package Level 1 Units: carton 5 piece
Package Level 1 Gross Weight: 1.19 kg
Classifications
Object Classification Code: F
ETIM 9: EC000042 – Miniature circuit breaker (MCB)
UNSPSC: 39121603
