General Information

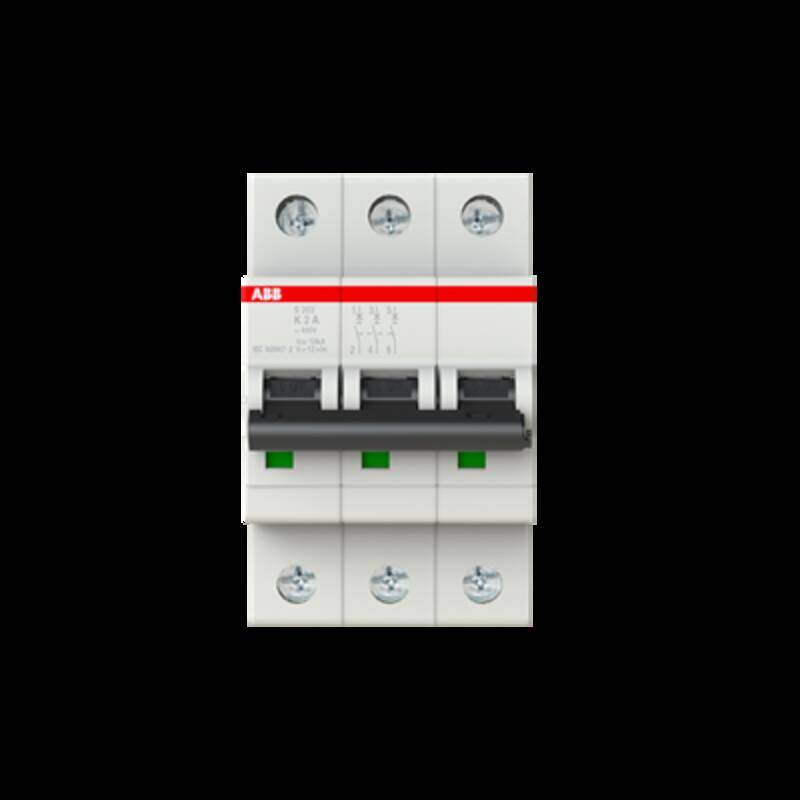

Extended Product Type: S203-K2
Product ID: 2CDS253001R0277
EAN: 4016779507493
Catalog Description: Miniature Circuit Breaker – S200 – 3P – 2 A – K – (AC) 6 kA
Long Description: System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical
Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Number of Poles: 3P
Number of Protected Poles: 3
Tripping Characteristic: K
Rated Current (In): 2 A
Rated Operational Voltage: acc. to IEC 60947-2 440 V AC
Power Loss: 4.95 W
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Dielectric Test Voltage: 50 / 60 Hz – 1 min 2 kV
Rated Short-Circuit Capacity: (AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 20 kA
(400 V AC) 10 kA
(440 V AC) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 15 kA
(400 V AC) 7.5 kA
(440 V AC) 7.5 kA
Energy Limiting Class: 3
Overvoltage Category: III
Pollution Degree: 3
Rated Frequency (f): 50 / 60 Hz
Electrical Endurance: 20000 AC cycle
Mechanical Endurance: 20000 cycle
Terminal Type: Screw Terminals
Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
Connecting Capacity: Busbar 10/10 mm²
Flexible with Ferrule 0.75 … 25 mm²
Flexible 0.75 … 25 mm²
Rigid 0.75 … 35 mm²
Stranded 0.75 … 35 mm²
Tightening Torque: 2.8 N·m
Recommended Screw Driver: Pozidriv 2
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position: any
Housing Material: Insulation Group II, RAL 7035
Actuator Type: Toggle
Actuator Material: Insulation Group II, Black, Sealable
Actuator Marking: I / O
Contact Position Indication: Red ON / Green OFF
Environmental
Degree of Protection: IP20
Ambient Air Temperature: Operation -25 … +55 °C
Storage -40 … +70 °C
Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms
Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 … 150 … 5 Hz
Dimensions
Product Net Width: 52.5 mm
Product Net Height: 88 mm
Product Net Depth / Length: 69 mm
Product Net Weight: 0.336 kg
Built-In Depth (t2): 69 mm
Ordering
EAN: 4016779507493
Package Level 1 Units: carton 1 piece
Package Level 1 Gross Weight: 0.356 kg
Classifications
Object Classification Code: F
ETIM 9: EC000042 – Miniature circuit breaker (MCB)
ETIM 10: EC000042 – Miniature circuit breaker (MCB)
eClass: V11.0 : 27141901
UNSPSC: 39121603
