Description

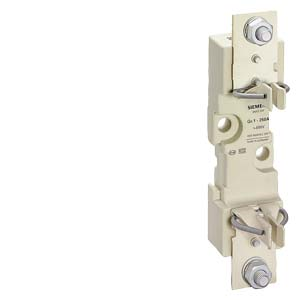

Product: LV HRC fuse base Sz. 1, 1-pole 250 A 690 V (1000 V) Double busbar terminal
Article Number (Market Facing Number): 3NH3220
Product family: Not available
Product Lifecycle (PLM): PM490:Start of final year of support
PLM Effective Date: Product discontinued since: 06.08.2024
Notes: Product is no longer available. Successor:3NH6220 ceramic/steel. If you need assistance please contact our local Siemens office
Price data Region Specific PriceGroup / Headquarter Price Group: 12J / 52F
Surcharge for Raw Materials: None
Metal Factor: L-P—–
Export Control Regulations: ECCN : N / AL : N
Standard lead time ex-works: 5 Day/Days
Net Weight: 0.764 Kg
Packaging Dimension: 17.1 cm x 21 cm x 9.6 cm
Package size unit of measure: MM
Quantity Unit: 1 Piece
Packaging Quantity: 1
Minimum order quantity: 3
EAN: 4001869020532
UPC: 754554153230
Customs Tariff Code: 85369095
LKZ_FDB/ CatalogID: LV10.1
Product Group: 5530
Group Code: P310
Country of origin: Greece
Compliance with the substance restrictions according to RoHS directive: Since: 01.06.2006
Product class: B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation: Yes
REACH Art. 33 Duty to inform according to the current list of candidates: Lead CAS-No. 7439-92-1 > 0, 1 % (w / w). Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead. Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
