Description
Product Name

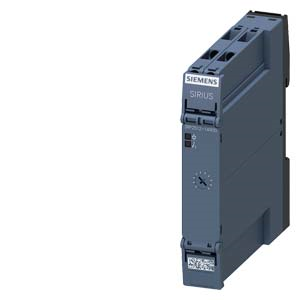

3RP2512-1AW30
Description
Timing relay, electronic slow-operating, 1 change-over contact, 1 time range 1.5…30 s, 12-240 V AC/DC at 50/60 Hz AC with LED, Screw terminal.
Product Family
SIRIUS 3RP25 timing relays 17.5 mm and 22.5 mm
Technical Data
Net Weight: 0.135 Kg, Packaging Dimensions (L x W x H): 3.6 cm x 10.9 cm x 12.6 cm, Quantity Unit: 1 Piece, Packaging Quantity: 1.
Compliance & Origin
Country of origin: Germany. RoHS compliance since: 12.09.2014. WEEE Take-Back Obligation: Yes. REACH Art. 33 Duty to inform: This product contains Lead, Lead monoxide (lead oxide), and 6,6′-di-tert-butyl-2,2′-methylenedi-p-cresol in concentrations higher than 0.1% weight by weight (w/w). Based on current information, these substances do not pose any risk if the articles are used as intended (including disposal). Please refer to product documentation.
Classification & Codes
Customs Tariff Code: 85364900. EAN: 4011209943568. UPC: 887621914929. LKZ_FDB CatalogID: CC-IC10. Product Group: 4952. Group Code: R711.
