Description

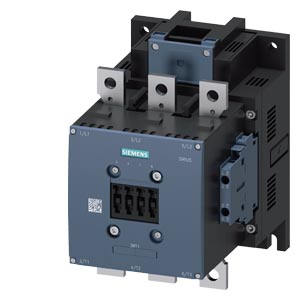

Product: 3RT1066-6AF36
Description: power contactor, AC-3e/AC-3 300 A, 160 kW / 400 V, AC (50-60 Hz) / DC Uc: 110-127 V 3-pole, auxiliary contacts 2 NO + 2 NC drive: conventional main circuit: busbar control and auxiliary circuit: screw terminal
Product family: SIRIUS 3RT contactors, 3-pole, up to 250 kW
Lifecycle status: PM300:Active Product
Weight: 6.506 kg
Packaging dimensions (L x W x H): 26.5 cm x 19.6 cm x 23.4 cm
Quantity unit: 1 Piece
EAN: 4011209508118
UPC: 754554766713
Commodity Code: 85364900
Country of origin: Germany
RoHS compliance: Since: 01.05.2012
WEEE take-back obligation: Yes
REACH Art. 33 Duty to inform: Lead CAS-No. 7439-92-1 > 0, 1 % (w / w). This product includes one or several articles in which lead is contained in concentrations higher than 0.1% weight by weight (w/w). Based on the information available, no risk is assumed if the articles are used and disposed as intended.
Export Control Regulations: AL : N / ECCN : N
Standard lead time ex-works: 10 Day/Days
Additional info: Metal Factor: LFO—–, Surcharge for Raw Materials: None, Price Group: 41B / 41B
Classifications: eClass 12: 27-37-10-03, eClass 14: 27-37-10-03, ETIM 10: EC000066, IDEA 4: 4755, UNSPSC 15: 39-12-15-29
