General Information
Extended Product Type: Smile 10 EA
Product ID: 2TLA030051R0400
EAN: 7350024432190

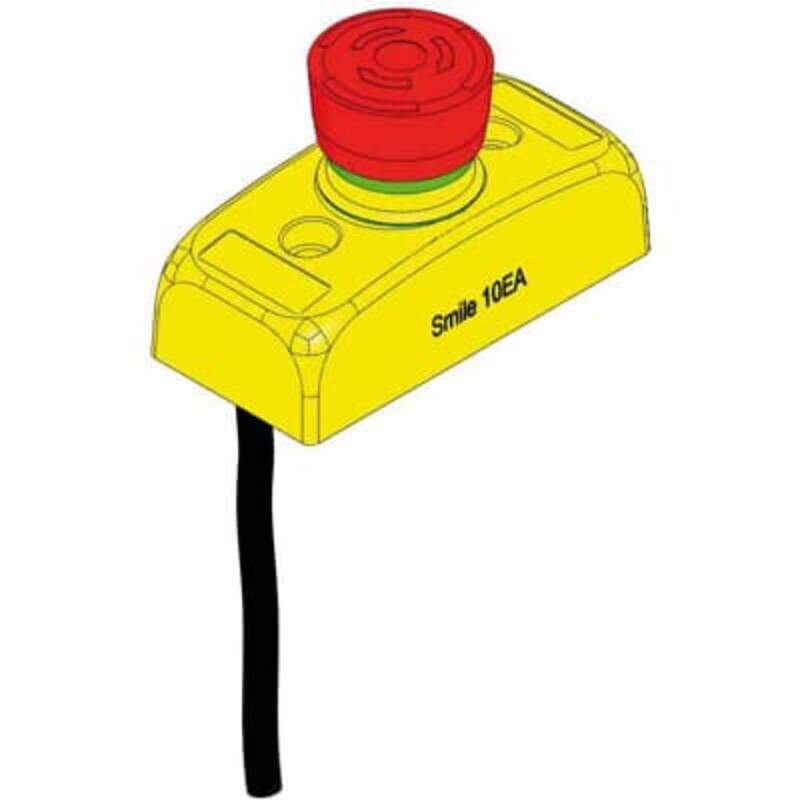

Catalog Description: Smile 10 EA Emergency stop button
Long Description: Emergency stop button in Smile enclosure, 2 x NC, Status LED in button, 1 meter cable 5 leads out of bottom.
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 8536508000
Product Main Type: Smile
Product Name: Emergency stop button
Function: Turn-release
Installation
Mounting Type: Surface mounting
Dimensions
Product Net Depth / Length: 52 mm
Product Net Height: 84 mm
Product Net Width: 40 mm
Product Net Weight: 0.112 kg
Safety Information
Certification Agency: Kiwa
Performance Level (PL): Up to e
Technical
Rated Control Supply Voltage (Us): 24 V DC
Rated Operational Voltage: 24 V DC
Environmental
Ambient Air Temperature: Operation -10 … 55 °C
Degree of Protection: IP65
Material Compliance
WEEE B2C / B2B: Business To Business
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 150 mm
Package Level 1 Depth / Length: 60 mm
Package Level 1 Height: 80 mm
Package Level 1 Gross Weight: 0.14 kg
Package Level 1 EAN: 7350024432190
External Classifications and Standards
eClass: V11.0 : 27371244
ETIM 7: EC002034 – Emergency stop complete
ETIM 8: EC002034 – Emergency stop complete
ETIM 9: EC002034 – Emergency stop complete
IDEA Granular Category Code (IGCC): 4773 >> Emergency stop device
UNSPSC: 39121545
Object Classification Code: B
E-Number (Finland): 2307409
E-Number (Sweden): 3861470
