Description

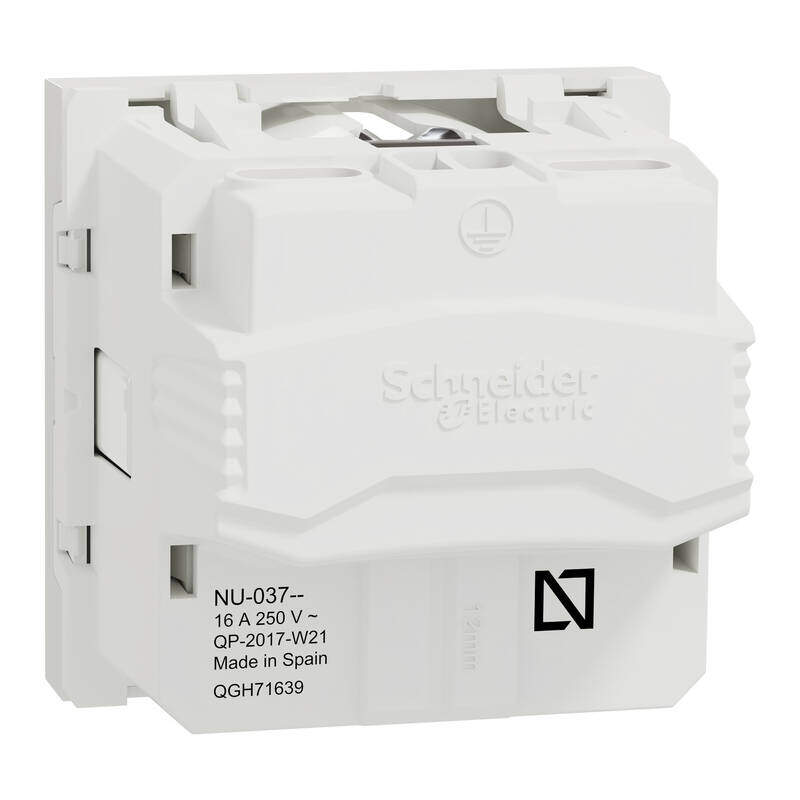

Schneider Electric New Unica socket-outlet NU303718 is a mechanism in color white. The outlet pole configuration of this socket-outlet is 2P + E with shutters, ensuring safety protection. And this device is German standard. The dielectric strength level, the voltage that the material this socket-outlet uses can withstand for a given wall thickness before dielectric breakdown, is 2000V. Clip-in this socket-outlet for the fixation. It is 45 mm in width, 45 mm in height, 40 mm in depth. With an embedding depth of 30.5 mm. The surface finish is glossy, delivering an elegant and high-end feeling to a room. The IP rating of this device is IP21D which is very high. Besides, it reaches IK04 protection level, which can help protect against impact. This socket-outlet has screw terminals connection terminals. The socket-outlet is made of Cu.Zn33, Cu.Zn37, PC (polycarbonate) GF10 FR, making it resistant and durable. This cover plate is AENOR, EAC certified. As a green premium product, this device is environmentally friendly. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
Specifications
Range: New Unica
Product or component type: Socket-outlet
Device presentation: Mechanism with cover plate
Device mounting: Flush
Socket number: 1
Outlet poles configuration: 2P + E
Outlet standard: CEE 7/3
Outlet standard deviation: Schuko
Outlet standard description: Side earth
Ground lug position: 90° ground lug
Rated current: 16 A
Device application: Power supply
Cover type: With shutter
[Ue] rated operational voltage: 250 V
Network type: AC
Network frequency: 50/60 Hz
Number of modules: 2 modules
fixing mode: Clip-in
Colour tint: White (RAL 9003)
Connections – terminals: Screw terminals
Cable cross section: 0…4 mm² cable(s), 2 – cable stiffness: flexible
0…4 mm² cable(s), 2 – cable stiffness: rigid
Minimum load breaking capacity: 100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical durability: 10000 cycles, cos phi = 0.8
Insulation resistance: > 5 MOhm at 500 V
Dielectric strength: 2000 V
Material: PC: mechanism cover
PC (polycarbonate) GF10 FR: casing
CuZn37: terminals
CuZn33: earth contact
Surface finish: Glossy
Quantity per set: Set of 1 flow-pack
Standards: IEC 60884-1
UNE 20315-1-1
UNE 20315-1-2
DIN VDE 0620-1
Product certifications: EAC
AENOR
Embedding depth: 30.5 mm
Depth: 40 mm
Width: 45 mm
Height: 45 mm
Net weight: 0.033 kg
surface treatment: Untreated
resistance to chemical agents: Resistant to alcohol (70 %)
Resistant to alcohol (96 %)
Resistant to A-Lactic Acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaner
Resistant to hydrogen peroxide 10 volumes
Resistant to hexane
Ambient air temperature for operation: -5…35 °C
Ambient air temperature for storage: -5…50 °C
IK degree of protection: IK04
IP degree of protection: IP21D
Environmental characteristic: Acetone
Bleach
UV resistant
Petrol
Oil
Alcohol
Window-cleaning fluid
Liquid soap
Warranty (in months): 18
