Spacial SM compact enclosure with mounting plate – 1600x1200x400 mm
SKU: NSYSM1612402DP
Description: Spacial SM monobloc compact steel enclosure with two plain front door. 1600 x 1200 x 400 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.
Main
Range: PanelSeT
Product name: PanelSeT SM
Product or Component Type: Compact enclosure
Application: Multi-purpose
Installation accessory type: Floor-standing
Device composition: 1 body
2 door
2 cable gland plate
1 locking system with handle door
1 blocking system left door
4 mounting plate bracket
1 mounting plate

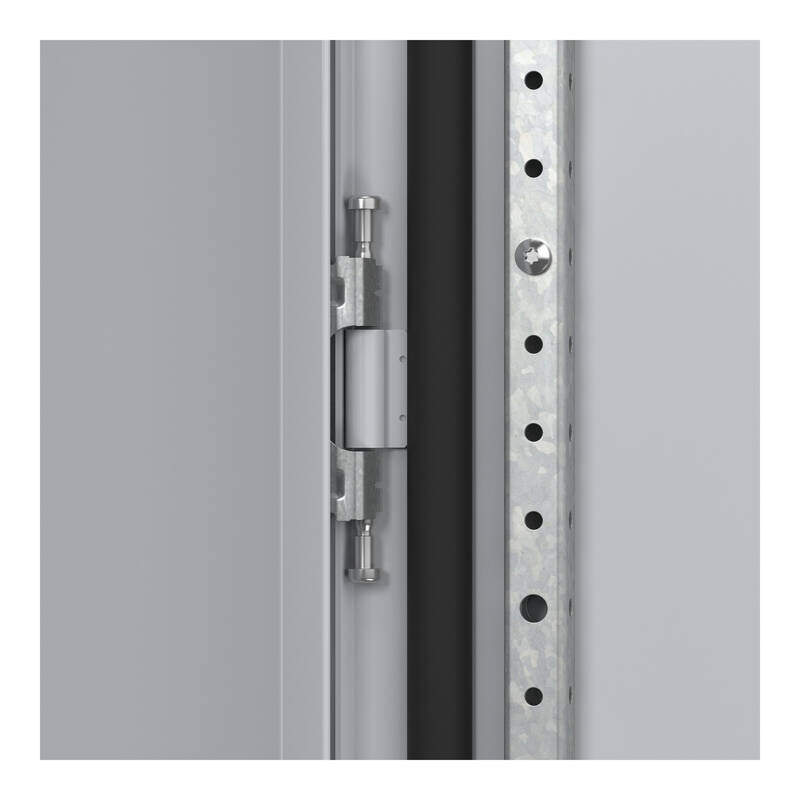

Removable parts: Door by screws hinge
Mounting plate by screws mounting plate bracket
Mounting plate bracket by screws
Enclosure nominal height: 1600 mm
Enclosure nominal width: 1200 mm
Enclosure nominal depth: 400 mm
Number of doors: Front 2
Door opening side: Left 120 °)
Right 120 °)
Door type: Solid
Lock type: 4 points lock, handle with 5 mm double bar insert
Body type: Front part forming a rigid frame with welded corners
Single piece body with welded rear panel
Mounting plate description: Plain
Type of gland plate: Standard
cable entry: 1 entry
Material: Mounting plate galvanised steel
Body sheet steel
Door sheet steel
Hinge zamak
Surface finish: epoxy-polyester powder
color: Enclosure Gray RAL 7035)
Handle Black RAL 9005)
Accessibility for operation: Front
Net Weight: 138.5 kg
Complementary
Standards: IEC 62208
Product Certifications: UL
BV
DNV
IK degree of protection: IK10 IEC 62262
UL
cUL
IP degree of protection: IP55 IEC 60529
Environment
Category: US10ES180035
Discount Schedule: 0ES1
GTIN: 3606485120171
Returnability: No
Country of origin: ES
Ordering and shipping details
Unit Type of Package 1: PCE
Nbr. of units in pkg.: 1
Package 1 Height: 173.000 cm
Package 1 Width: 125.000 cm
Package 1 Length: 49.000 cm
Package weight(Lbs): 151.000 kg
Unit Type of Package 2: PAL
Number of Units in Package 2: 2
Package 2 Height: 173.000 cm
Package 2 Width: 125.000 cm
Package 2 Length: 98.000 cm
Package 2 Weight: 302.000 kg
Packing Units
Warranty (in months): 18
