Description

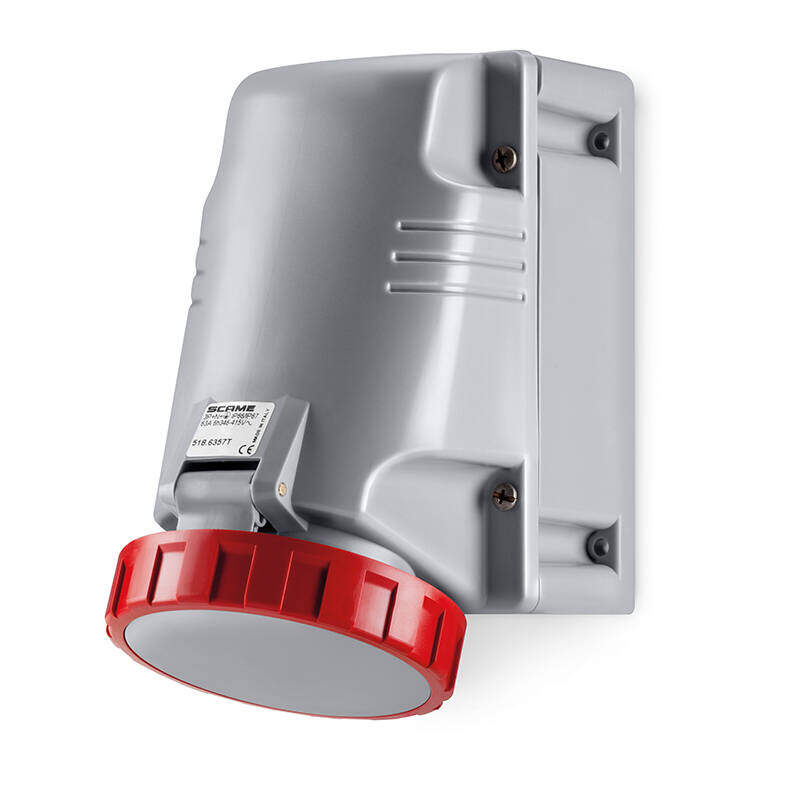

SURFACE MOUNTING SOCKET
Model: 518.6356T
Description: The OPTIMA-TOP Series surface mounting socket is designed for demanding industrial environments, featuring a rated voltage of 380-415V and a rated current of 63A. This 3P+E socket supports working frequencies of 50Hz and 60Hz, with a 6h hour position. It offers a high protection degree of IP66/IP67/IP69, ensuring excellent resistance to dust and water ingress. The socket is equipped with mantle terminals and angled outlets for optimal connectivity. It includes a cable gland, open threaded cable entry, and a threaded cap/cable sleeve for secure installation. This product is engineered to meet the rigorous requirements of industrial applications.
Tech Data
Commercial Series: OPTIMA-TOP Series
Synthetical description: SURFACE MOUNTING SOCKET
Mounting version: SURFACE MOUNTING
Rated current: 63A
Poles: 3P+E
Hour position: 6h
Rated voltage: 380-415V
Working frequency: 60Hz, 50Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Watertight
Protection degree IP: IP66/IP67/IP69
Protection degree IK: IK08
Types of available outlets: ANGLED
Terminals: Mantle terminals
Contact material: CuZn (brass)
Cable entry: M40X1,5
Catalogue notes: – Open threaded cable entryn- Cable gland includedn- Threaded cap/cable sleeve included
Product
EAN code: 8001636311500
INTRASTAT code: 8536699099
Net weight: 0.963 KG
Minimum Quantity: 4
Packaging
Packaging Carton EAN code: 8001636752662
Quantity: 4
Depth: 400.0 MM
Width: 300.0 MM
Height: 240.0 MM
Volume: 28800.0 CCM
