Description

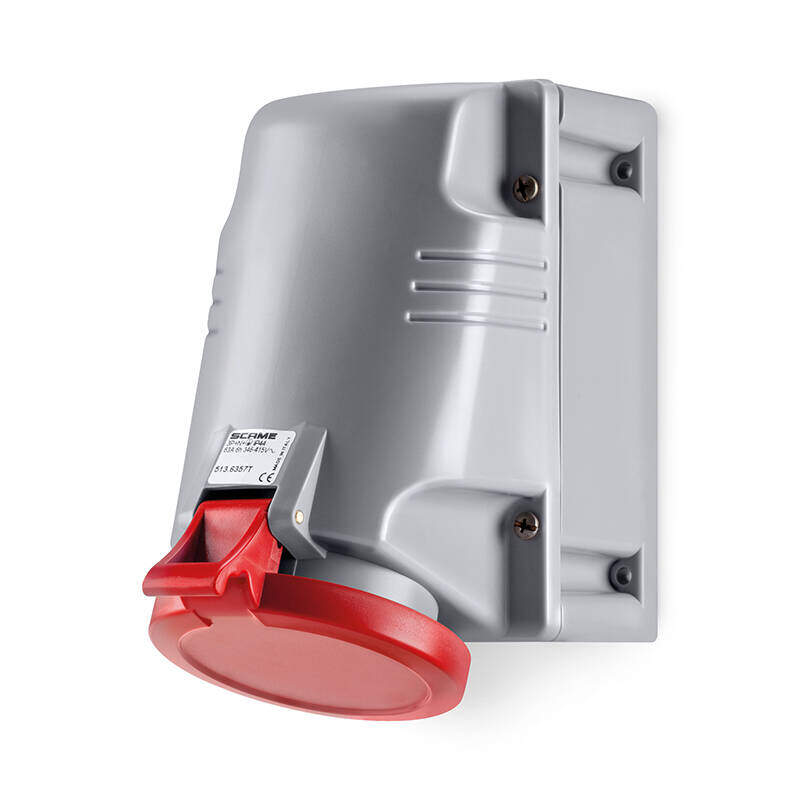

SURFACE MOUNTING SOCKET
63A 3P+N+E 6h 346-415V 60Hz 50Hz Mantle terminals
Cod. 513.6357T
The OPTIMA-TOP Series surface mounting socket is engineered for robust industrial applications. Featuring an angled outlet design, it accommodates a 3P+N+E configuration with a rated current of 63A. It operates efficiently within a working frequency range of 50Hz to 60Hz and supports a rated voltage of 346-415V. The socket is designed with a 6h hour position and offers a protection degree of IP44/IP54, ensuring reliable performance in demanding environments. Equipped with mantle terminals, it includes a cable gland, open threaded cable entry, and a threaded cap/cable sleeve for secure and efficient installation.
Details
Commercial Series: OPTIMA-TOP Series
Synthetical description: SURFACE MOUNTING SOCKET
Mounting version: SURFACE MOUNTING
Rated current: 63A
Poles: 3P+N+E
Hour position: 6h
Rated voltage: 346-415V
Working frequency: 60Hz, 50Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Splash proof
Protection degree IP: IP44/IP54
Protection degree IK: IK08
Types of available outlets: ANGLED
Terminals: Mantle terminals
Contact material: CuZn (brass)
Cable entry: M40X1,5
Catalogue notes: – Open threaded cable entry
– Cable gland included
– Threaded cap/cable sleeve included
Codes
EAN code: 8001636311487
INTRASTAT code: 8536699099
Weight & Dimensions
Net weight: 0.952 KG
Packaging
Minimum Quantity: 4
Packaging Carton Quantity: 4
Packaging Carton EAN code: 8001636752648
Packaging Carton Depth: 400.0 MM
Packaging Carton Width: 300.0 MM
Packaging Carton Height: 240.0 MM
Packaging Carton Volume: 28800.0 CCM
