Description
ISOLATORS-AL Series Switch Disconnector

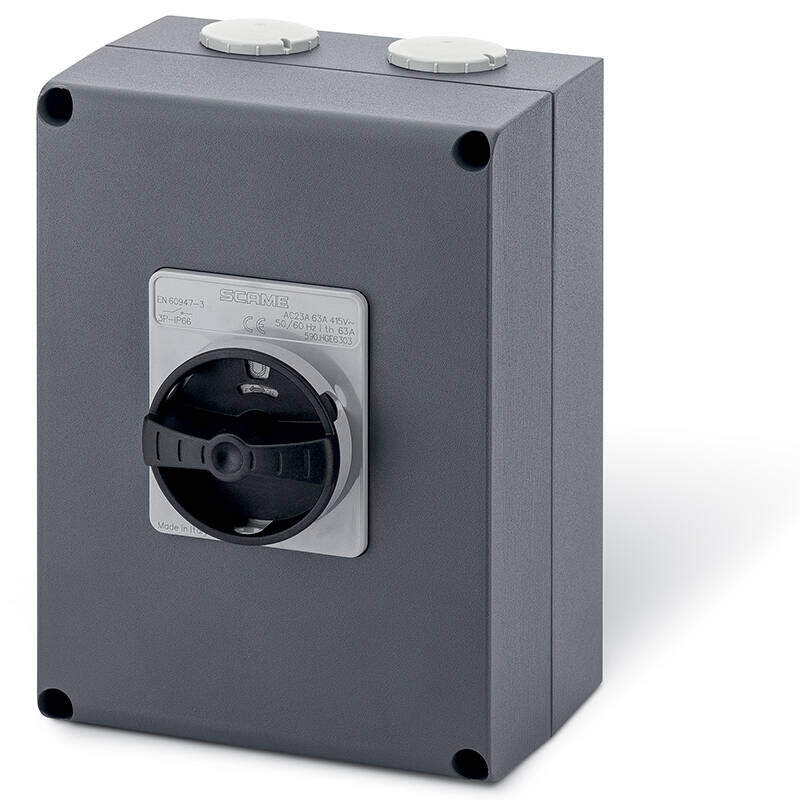

The 590.HGE8003 is an enclosed switch disconnector from the ISOLATORS-AL Series, designed for surface mounting. It features a robust die-cast aluminium construction with a grey/black general type handle.
Technical Specifications
- Rated Current: 80A
- Poles: 3P
- Switch Size: Y2
- Rated Voltage: 690V
- Dimensions: 15.0×21.0x10.7 cm
- Protection Degree: IP66
- Impact Resistance: IK10
- Installation Temperature: -25°C to +60°C
- Rated Insulation Voltage (Ui): 690VAC
- Rated Impulse Voltage (Uimp): 4kV
- Thermal Current (Ithe): 80A
- Current (Ie) in AC21A (415V/500V/690V): 80A
- Current (Ie) in AC22A (415V/500V/690V): 80A
- Current (Ie) in AC23A (415V): 67A
- Current (Ie) in AC23A (500V): 67A
- Current (Ie) in AC23A (690V): 38A
- Current (Ie) in AC3 (415V): 55A
- Current (Ie) in AC3 (690V): 32A
- Power AC23A (415V): 37kW
- Short-time withstand current (Icw): 1.5kA (1s)
- Conditional short circuit current: 10kAeff
- Associate fuse (type gG): 80A
- Terminals (Rigid wires): 10-35mm²
- Terminals tightening torque: 3.6Nm
Features
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position. Equipped with door interlock. Open threaded cable entry with cap / cable sleeve.
