Description

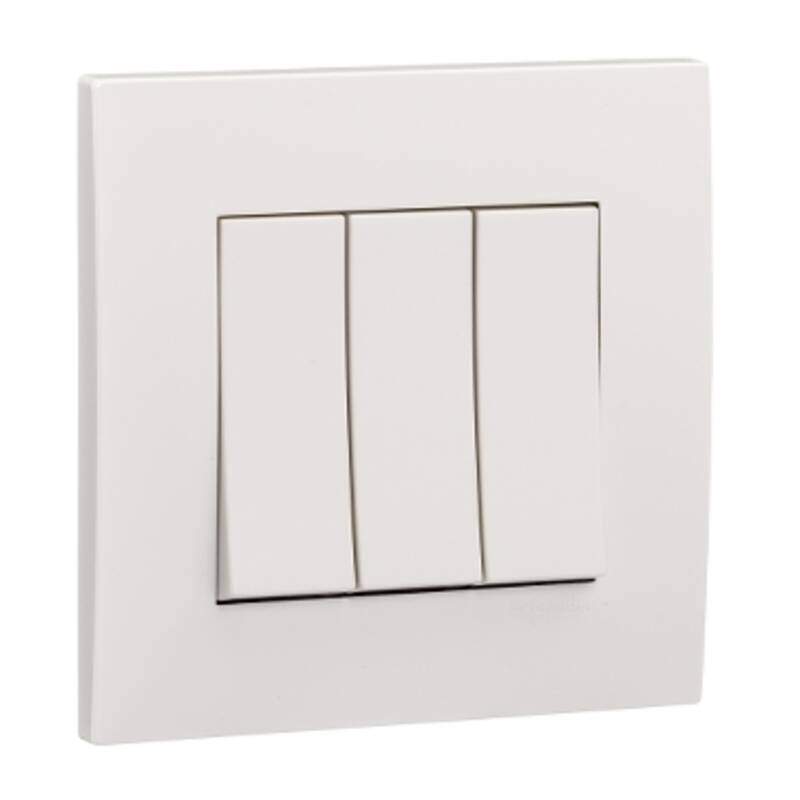

This Schneider Electric Vivace 1-way switch is with a power supply application. A rocker/button is used for operating. The connection of the device is made with screw terminals. The device is of 3 gangs and 3 rockers. Its Ue-rated operating voltage is 250V and the rated current is 16AX. The frequency is 50/60Hz. This device enables flush mounting. The dimension of the product is (W) 86mm x (H) 86mm x (D) 37mm. The Embedded depth is 25mm. The color of this device is White with a Glossy finish. It is made of polycarbonate material. The Operating temperature is from -5°C up to +40°C. It reaches an IP20 degree of protection. The Relative Humidity is from 0% to 95%. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle. A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors. This device is compliant with IEC 60669-1, MS IEC 60669-1, and SS 227 standards.
Specifications
Range: Vivace
Product or component type: Switch
Device short name: KB33
Device application: Control switch
Number of rocker: 3
Additional switch application: On/off switching
Switch function: 1-way
Colour tint: White
Main
Technology type: Electromechanical
Device presentation: Complete product
Actuator: Rocker
Number of gangs: 3 gangs
Material: Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
Surface finish: Glossy
Surface treatment: Untreated
[Ue] rated operational voltage: 220…250 V
Type of packing: Plastic bag
Network type: AC
Quantity per set: 1
Rated current: 16 AX
Sale per indivisible quantity: 1
Projecting depth: 8 mm
Device mounting: Flush
Mounting support: Wall mounted
Fixing mode: By screw M3.5
Fixing center: 60.3 mm
Connections – terminals: Screw terminal
Embedding depth: 25 mm
Number of terminals: 6
Rated current: 16 AX at 250 V AC, inductive
16 AX at 250 V AC, fluorescent
16 A at 250 V AC, resistive
[Ue] rated operational voltage: 250 V AC
Network frequency: 50/60 Hz
Contacts material: Brass and phosphor bronze
Connections – terminals: 6 screw terminals
Terminal identifier: L1
L2
COM
Tightening torque: 0.4 N.m
Clamping connection capacity: <= 2.5 mm² for rigid or stranded cable(s)
Wire stripping length: 12 mm
Width: 86 mm
Height: 86 mm
Depth: 37 mm
Complementary
Standards: IEC 60669-1
MS IEC 60669-1
SS 227
Ambient air temperature for operation: -5…40 °C
Relative humidity: 0…95 %
Operating altitude: 0…2000 m
Environmental characteristic: Indoor use
IP degree of protection: IP20
Environment
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.8 cm
Package 1 Width: 8.6 cm
Package 1 Length: 8.6 cm
Package 1 Weight: 91 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 8
Package 2 Height: 9.5 cm
Package 2 Width: 15 cm
Package 2 Length: 19 cm
Package 2 Weight: 860 g
Unit Type of Package 3: CAR
Number of Units in Package 3: 80
Package 3 Height: 21 cm
Package 3 Width: 31.5 cm
Package 3 Length: 50 cm
Package 3 Weight: 8.6 kg
Packing Units
Warranty (in months): 18
