Product details

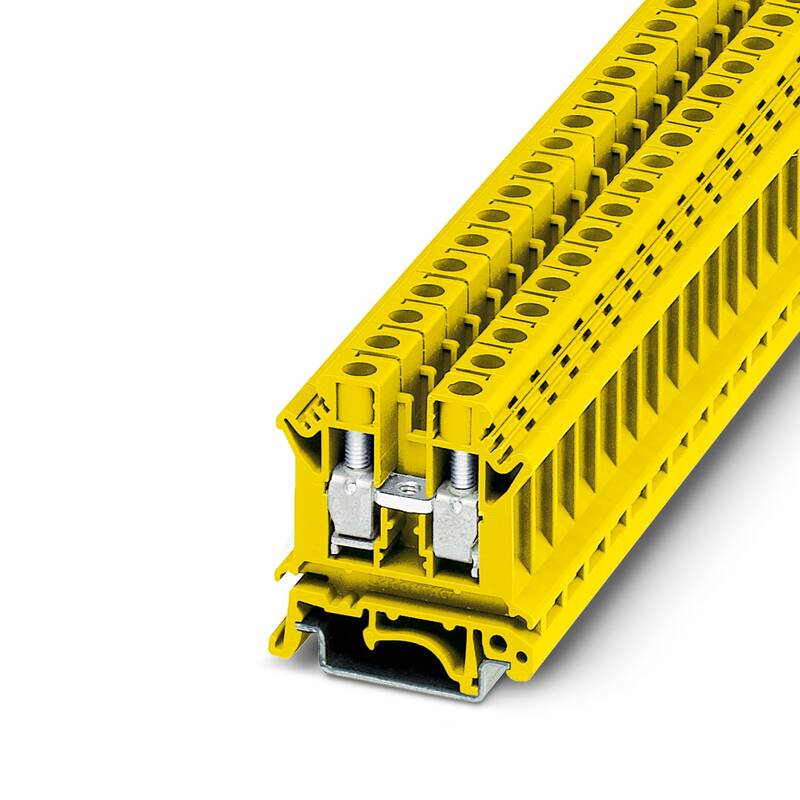

Product Name: TB 10 EI YE – Feed-through terminal block
Article Number: 3000864
GTIN: 4055626646022
Description: Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 10 mm2, cross section: 1.5 mm2 – 16 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: yellow
Technical data
Product properties
Product family: TB
Number of positions: 1
Number of connections: 2
Number of rows: 1
Potentials: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Electrical properties
Rated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 1.82 W
Connection data
Connection method: Screw connection
Screw thread: M4
Tightening torque: 1.2 … 1.4 Nm
Stripping length: 10 mm
Nominal cross section: 10 mm²
Nominal current: 57 A
Maximum load current: 57 A (with 16 mm² conductor cross-section)
Nominal voltage: 1000 V (in the case of enclosed clamping space)
Dimensions
Width: 10.2 mm
Height: 42.8 mm
Depth on NS 32: 52.8 mm
Depth on NS 35/7,5: 47 mm
Depth on NS 35/15: 54.5 mm
Material specifications
Color: yellow (RAL 1018)
Flammability rating according to UL 94: V2
Insulating material: PA
Environmental and real-life conditions
Ambient temperature (operation): -60 °C … 110 °C
Mounting
Mounting type: NS 35/7,5, NS 35/15, NS 32
Commercial data
Packing unit: 50 pc
Minimum order quantity: 50 pc
Weight per piece (excluding packing): 22.22 g
Customs tariff number: 85369010
Country of origin: IN
