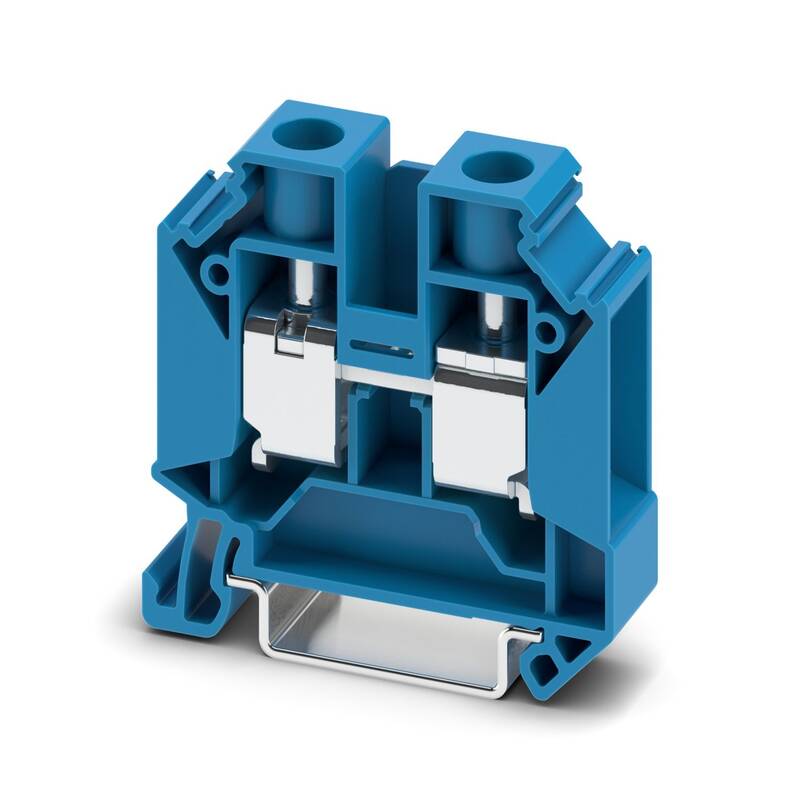

Feed-through terminal block
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 76 A, number of connections: 2, connection method: Screw connection, Rated cross section: 16 mm2, cross section: 6 mm2 – 16 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: blue
Product details
General
Note: For a reliable contact of multi stranded conductors it is recommended to untwist multi stranded conductors.
Tested at 1100 V
Product properties
Product family: TB
Number of connections: 2
Number of rows: 1
Potentials: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Electrical properties
Rated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 2.43 W
Connection data
Number of connections per level: 2
Nominal cross section: 16 mm²
Connection method: Screw connection
Screw thread: M4
Tightening torque: 1.2 Nm
Stripping length: 12 mm
Internal cylindrical gage: A7
Connection in acc. with standard: IEC 60947-7-1
Conductor cross-section rigid: 6 mm² … 16 mm²
Cross section AWG: 8 … 6 (converted acc. to IEC)
Conductor cross-section flexible: 6 mm² … 16 mm²
Conductor cross-section, flexible [AWG]: 8 … 6 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 6 mm² … 16 mm²
Flexible conductor cross-section (ferrule with plastic sleeve): 6 mm² … 16 mm²
Cross-section with insertion bridge, rigid: 16 mm²
Cross-section with insertion bridge, flexible: 16 mm²
2 conductors with same cross section, rigid: 4 mm² … 10 mm²
2 conductors with same cross section, flexible: 4 mm² … 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 4 mm² … 6 mm²
Nominal current: 76 A
Maximum load current: 76 A
Nominal voltage: 1000 V
Note: Checked at 1100 V
Dimensions
Width: 12.2 mm
End cover width: 1.5 mm
Height: 51 mm
Depth on NS 32: 55.5 mm
Depth on NS 35/7,5: 50.5 mm
Depth on NS 35/15: 58 mm
Material specifications
Color: blue (RAL 5015)
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Static insulating material application in cold: -60 °C
Relative insulation material temperature index (Elec., UL 746 B): 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 – HL 3
Surface flammability NFPA 130 (ASTM E 162): passed
Specific optical density of smoke NFPA 130 (ASTM E 662): passed
Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mounting
Mounting type: NS 35/7,5
NS 35/15
NS 32
Commercial data
Item number: 3214152
Packing unit: 50 pc
Minimum order quantity: 50 pc
Product key: BEK211
GTIN: 4046356569439
Weight per piece (including packing): 26.85 g
Weight per piece (excluding packing): 25.822 g
Customs tariff number: 85369010
Country of origin: IN
