Product Details

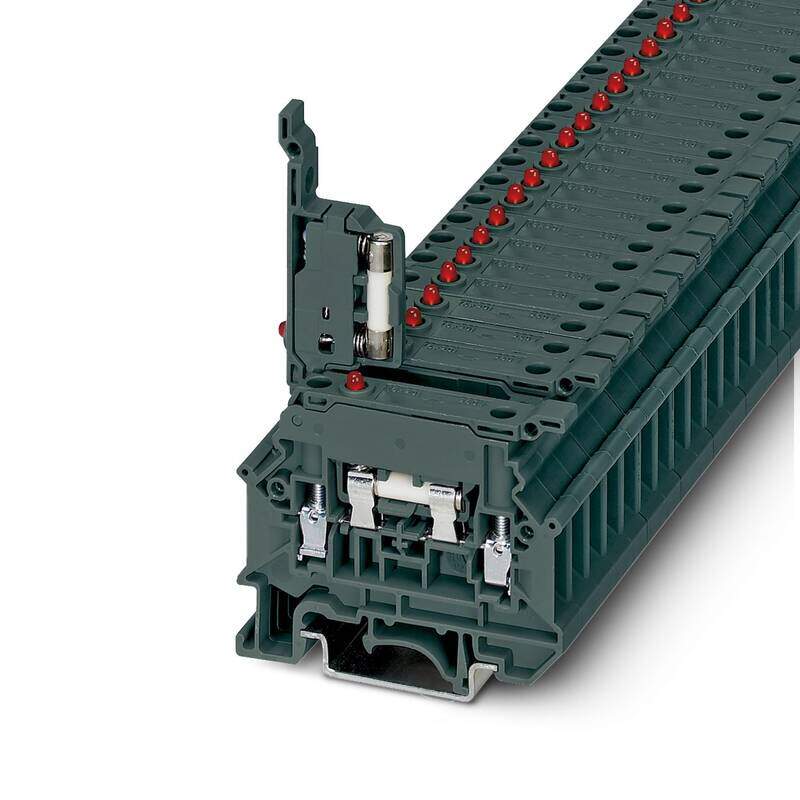

Product Name: TB 4-HESILED 24 (5X20) EI – Fuse modular terminal block
Article Number: 3075799
GTIN: 4046356528849
Description: Fuse modular terminal block, fuse type: G / 5 x 20, nom. voltage: 24 V, nominal current: 6.3 A, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.5 mm2- 6 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: dark gray
Technical Data
General Note: The current is determined by the fuse used, the voltage by the fuse or selected light indicator.
Product properties
Number of connections: 2
Number of rows: 1
Potentials: 1
Overvoltage category: III
Degree of pollution: 3
Electrical properties
Rated surge voltage: 6 kV
Maximum power dissipation for nominal condition: 1.31 W
Fuse: G / 5 x 20
Connection data
Connection method: Screw connection
Screw thread: M3
Tightening torque: 0.5 … 0.6 Nm
Stripping length: 9 mm
Nominal cross section: 4 mm²
Rated cross section AWG: 10
Conductor cross-section rigid: 0.5 mm² … 6 mm²
Conductor cross-section flexible: 0.5 mm² … 4 mm²
Nominal current: 6.3 A
Maximum load current: 6.3 A (the current is determined by the fuse used)
Nominal voltage: 24 V (the voltage is determined by the light indicator.)
Dimensions
Width: 8.2 mm
Height: 58 mm
Depth on NS 32: 55 mm
Depth on NS 35/7,5: 50 mm
Depth on NS 35/15: 57.5 mm
Material specifications
Color: traffic gray B (RAL 7043)
Flammability rating according to UL 94: V0
Insulating material: PA
Environmental and real-life conditions
Ambient temperature (operation): -60 °C … 110 °C
Ambient temperature (storage/transport): -25 °C … 60 °C
Ambient temperature (assembly): -5 °C … 70 °C
Mounting
Mounting type: NS 35/7,5, NS 35/15, NS 32
Commercial data
Packing unit: 50 pc
Minimum order quantity: 50 pc
Weight per piece (excluding packing): 14.125 g
Country of origin: IN
