Description
Main
Range: TeSys

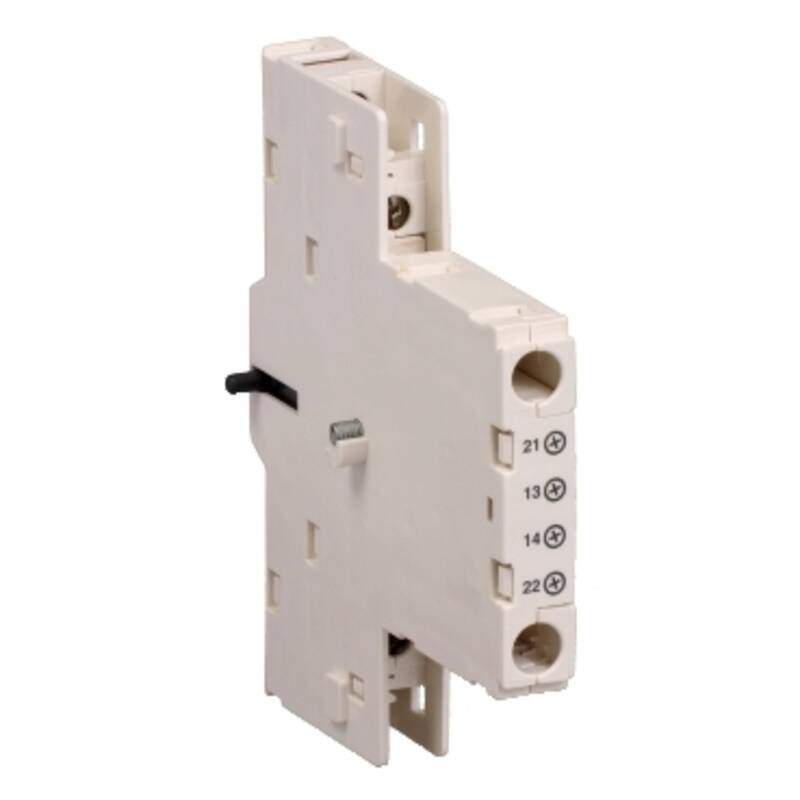

Device short name: GV3A
Product or Component Type: Auxiliary contact block
Product Compatibility: GV3ME
Mounting Location: Right side
Pole contact composition: 2 NO + 1 NC
Quantity per Set: Set of 10
[Ui] rated insulation voltage: 600 V UL 508
690 V IEC 60947-1
600 V CSA C22.2 No 14
[Ue] rated operational voltage: 48…690 V AC
24…220 V DC
[Ith] conventional free air thermal current: 6 A
Mechanical durability: 100000 cycles
Protection type: GB2CB… circuit breaker
GG fuse 6 A
Rated operational power in VA: 350 VA 48 V AC-11 100000 cycles
700 VA 440 V AC-11 100000 cycles
700 VA 500 V AC-11 100000 cycles
400 VA 690 V AC-11 100000 cycles
500 VA 110…127 V AC-11 100000 cycles
800 VA 220…240 V AC-11 100000 cycles
850 VA 380…415 V AC-11 100000 cycles
Rated operational power in W: 180 W 24 V DC-11 100000 cycles
240 W 48 V DC-11 100000 cycles
180 W 60 V DC-11 100000 cycles
140 W 110 V DC-11 100000 cycles
120 W 220 V DC-11 100000 cycles
Net Weight: 0.07 kg
Complementary
Environmental characteristic: Normal environment
Environment
Category: 22366-MAN STR PROTECTORS-GV1/GV3
Discount Schedule: I11
GTIN: 3389110343380
Returnability: No
Country of origin: FR
Ordering and shipping details
Unit Type of Package 1: PCE
Nbr. of units in pkg.: 1
Package 1 Height: 1.5 cm
Package 1 Width: 7 cm
Package 1 Length: 8 cm
Package weight(Lbs): 0.045 kg
Contractual warranty
Warranty (in months): 18
