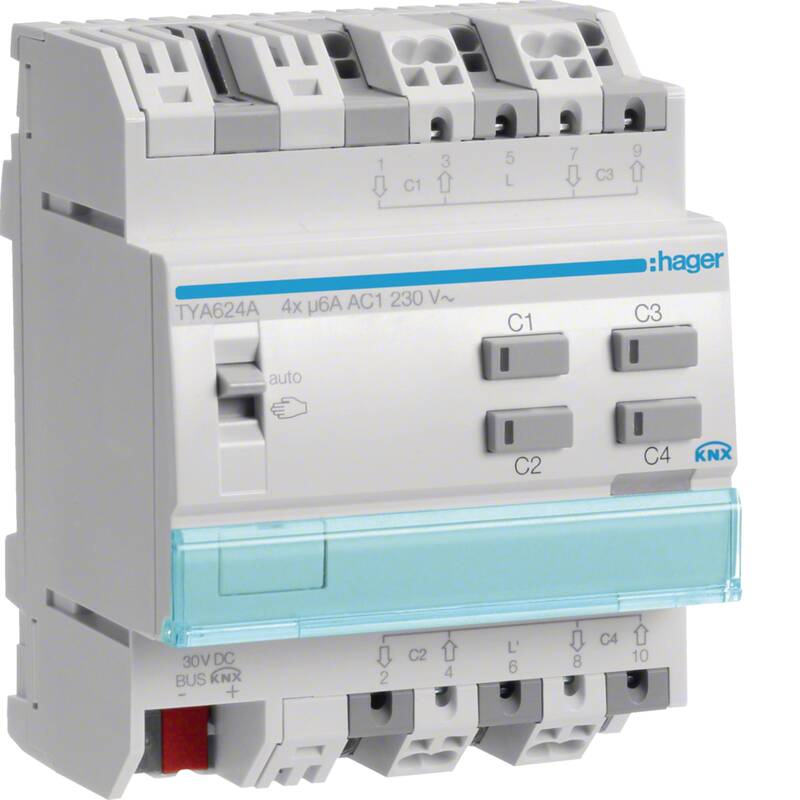

Description
Technical properties
Architecture
-
Bus systemKNX
-
Number of blinds/shutters outputs4
-
Fixing modeREG
Functions
-
Bus module detachableNo
-
Multi-phase modesuitable to switch different external conductors
-
Functionwith sun shade function ; with safety functions e.g. for wind, rain, alarm ; with positioning function for roller shutter position
-
Operating modeoperating mode only roller shutters
Configuration
-
Number of modules4
Controls and indicators
-
Indicator lampyes
-
Operationmanual operation per channel using button (single-area operation),Manual operation can be activated via selection switch, thereby deactivation of the KNX function
-
Controlfor activation of an AC drive per actuator channel
-
Indication / displaystatus LED integrated in the manual operation button
-
Manual selection switches / push-buttons4 manual operation buttons for up/down per channel/device
-
Button / push-buttonwith illuminated programming button
Main electrical features
-
Type of supply voltageAC
-
Frequency50/60
-
Rated current6 A
Voltage
-
Operating voltage over bus21…32 V DC
-
System supply voltage30V DC via bus
Electric current
-
Bus current consumption (data transfer)5.2 mA
-
Bus current consumption (idle)5 mA
-
Number of entry circuits0
-
Maximum switching current6 A
-
Switching current at cos φ = 0.6max. 6 A
Dimensions
-
Depth65 mm
-
Width of rail mounted device (RMD)4 modules
-
Height90 mm
Power
-
Contact rating with 230 V in AC11380 W
-
Total power loss under IN2 W
Materials
-
Colourlight grey
-
RAL colourRAL 7035 – Light grey
LED control
-
LEDStatus LED integrated in manual operation button
Connection
-
Connection cross-sect. flexible conductor0,75 / 2,5mm²
-
Connection cross-sect. rigid cable0,75 / 2.5mm²
-
Conductor cross-section (flexible)0.75…2.5 mm²
-
Conductor cross-section (flexible), without wire end sleeve0.75…2.5 mm²
-
Conductor cross-section (rigid)0.75…2.5 mm²
-
Number of contacts4
-
Bus coupling unitwith integral bus coupling unit
-
Type of connectionwith QuickConnect plug-in terminals
-
Bus connectionbus connection via connecting terminal
-
Type of connectionquick connect
Settings
-
Supported configuration modessystem
-
Settingswitching time on change of direction adjustable
Scope of delivery
-
Bus connection includedYes
Equipment
-
Modular expandabilityNo
Safety
-
Protection index IPIP20
-
Halogen freeNo
Use conditions
-
Operating temperature-5…45 °C
-
Storage/transport temperature-20…70 °C
Identification
-
Device familyTYA
-
Main design lineKNX
-
Search wordsKNX;EIB;Control intuitively;ETS;Roller shutter controller;Shading;Actuator technology;DIN rails;
