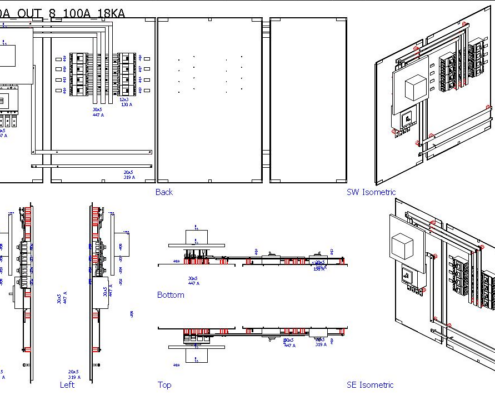

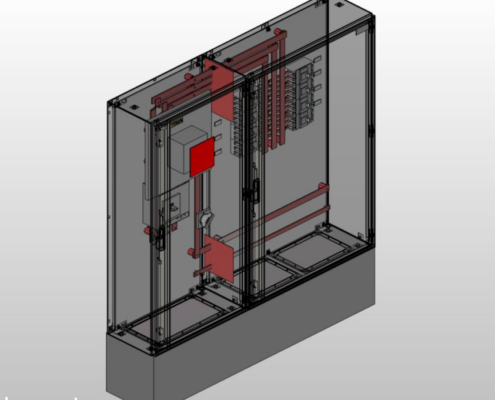

Standard Features:

Incomer up to 400A 4P 50KA Adjustable
8xFeeders up to 100A 3P 18KA

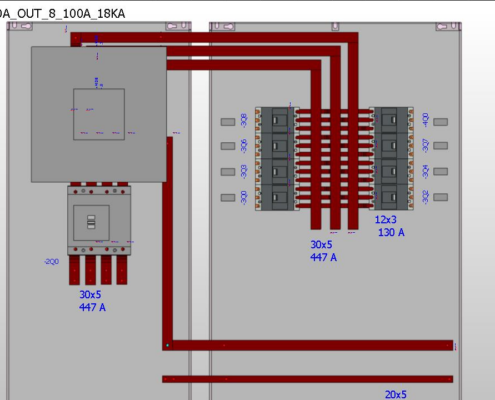

Busbar 30×5
Suitable Enclosure IP55
Floor Mounting with base 30cm height
Left door is interlocked with main breaker door handle
Left door is sealed as per JEPCO standards
For breakers <= 160A direct cable connection up to 35mm2 For breakers >= 200 busbar connection is fabricated for cable termination

Components List:

8 X ABB.1SDA068758R1: A1B 125 TMF 32-400 3p F F
1 X ABB.1SDA054929R1: ROTARY HANDLE T4-T5 F/P STAND. RETURNED
1 X ABB.1SDA054341R1: T5S 400 PR221DS-LS/I In=400 4p F F

———————————————
Approximate Weight: 162.04 KG

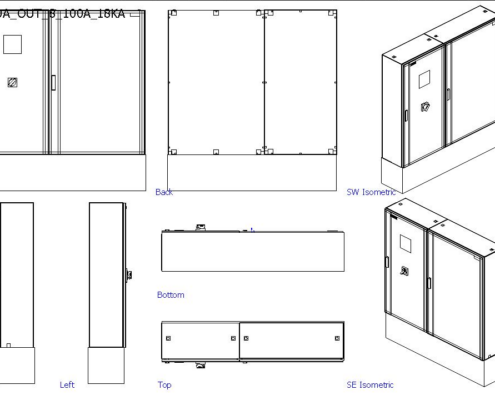

Approx Dimensions (WxHxD): 140x120x30 cm
———————————————
Current LME Price: 10100 USD/Ton
1 EURO = 1.07 USD
Last update date: 01/05/2024
———————————————
