Standard Features:

Incomer up to 100A 3P 18KA
4xFeeders up to100A 3P 18KA
Busbar 15×3
Suitable Enclosure IP55
For breakers <= 160A direct cable connection up to 35mm2 For breakers >= 200 busbar connection is fabricated for cable termination

Components List:

1 X ABB.1SDA066707R1: A1B 125 TMF 100-1000 3p F F
4 X ABB.1SDA068758R1: A1B 125 TMF 32-400 3p F F

Approximate Weight: 24.53 KG
Approx Dimensions (WxHxD): 50x60x20 cm
Current LME Price: 10100 USD/Ton
1 EURO = 1.07 USD
Last update date: 02/05/2024

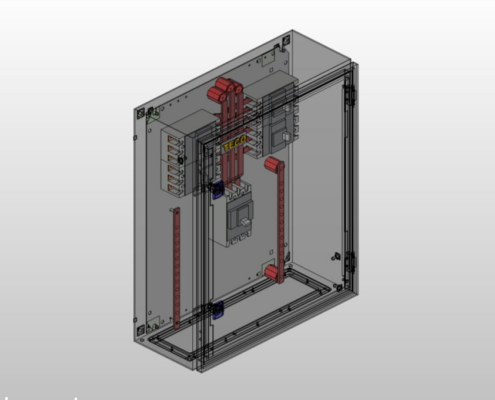

360 view


SKU: 22035_SMDB_ABB_SMDB_IN_100A_OUT_4_100A Category: Tag:
